Installation Procedure
- Install the mid-gate window to the open.

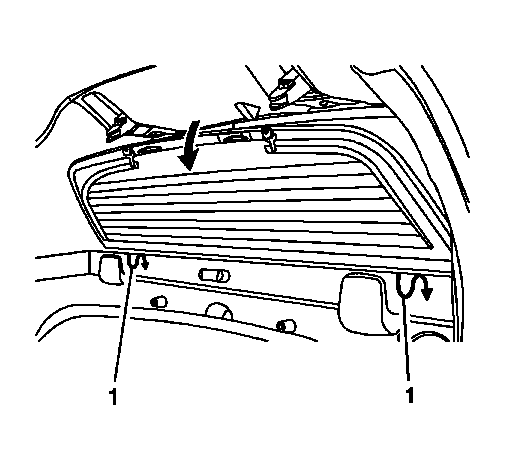

- With the mid-gate window tilted at an angle, place the bottom edge in the lower channel of the window frame (1).

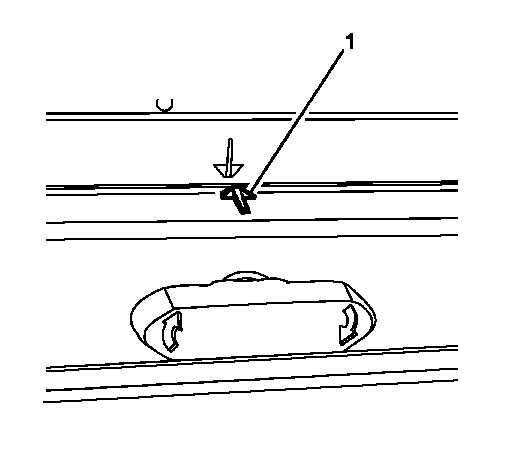

Be sure to align the mid-gate window side-to-side using the glass alignment arrows (1).

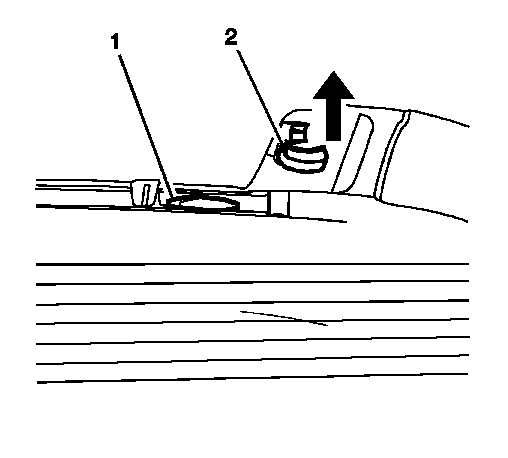

- Apply a firm downward pressure and then push the mid-gate window flat against the window frame. Use the grab handles (1) at the top of the rear glass to assist you.
- Push the mid-gate window flat against the window frame and push each latch lever (2) up until it locks. You should hear a click when each latch lever locks correctly.
The rear seats can be returned to the normal position when the rear glass is out and stored properly in the storage pocket.
