Seat Climate Control Module X1 (KB6)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

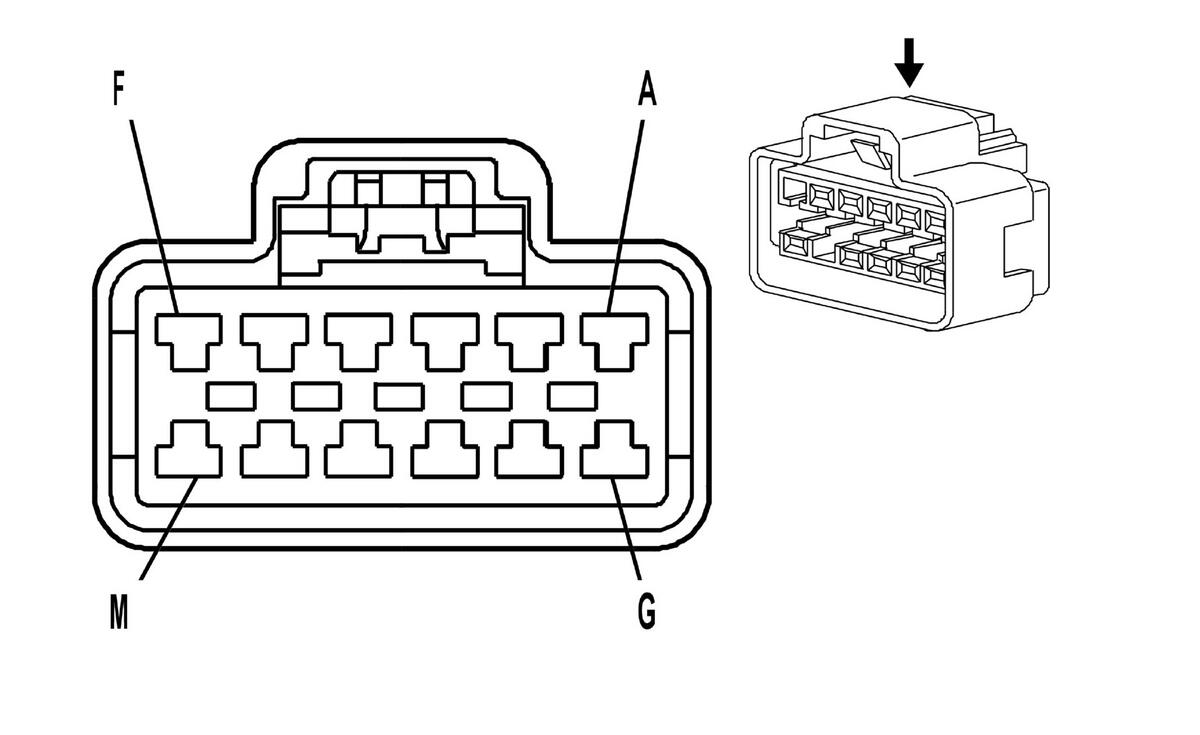

Fig 1: Seat Climate Control Module X1 (KB6) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
A	1 PK/BK	6199	Passenger Seat Cushion Heated/Cool Ventilation Module Heat Control
B	1 BK/WH	6200	Passenger Seat Cushion Heated/Cool Ventilation Module Cool Control
C	1 YE	6197	Passenger Seat Back Heated/Cool Ventilation Module Heat Control
D	1 D-BU/WH	6198	Passenger Seat Back Heated/Cool Ventilation Module Cool Control
E	3 RD/WH	4740	Battery Positive Voltage
F	-	-	Not Used
G	1 D-GN	6195	Driver Seat Cushion Heated/Cool Ventilation Module Heat Control
H	1 PU	6196	Driver Seat Cushion Heated/Cool Ventilation Module Cool Control
J	1 BN	6193	Driver Seat Back Heated/Cool Ventilation Module Heat Control
K	1 OG	6194	Driver Seat Back Heated/Cool Ventilation Module Cool Control
L	-	-	Not Used
M	3 BK	1250	Ground

Connector Part Information

Harness Type: Passenger Seat
OEM Connector: 15326110
Service Connector: 15306171
Description: 12-Way F 280 GT Series (BK)

Terminal Part Information

Pins: A-D, G-K
Terminated Lead: 13575753
Release Tool: J-38125-553
Diagnostic Test Probe: J-35616-4A (PU)
Terminal/Tray: 15304711/8
Core/Insulation Crimp: 2/A

Pins: E, M
Terminated Lead: Service by Harness - See Part Catalog
Release Tool: Pending
Diagnostic Test Probe: Pending
Terminal/Tray: Not Available
Core/Insulation Crimp: Not Available
