Seat Climate Control Module X2 (KB6)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

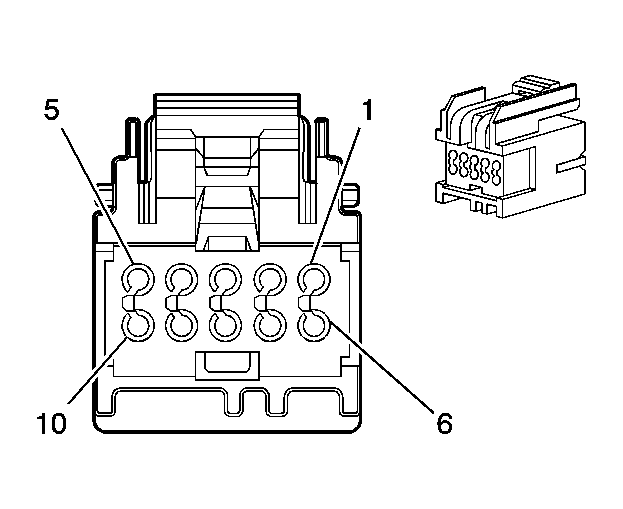

Fig 1: Seat Climate Control Module X2 (KB6) Connector End View
GM1455858Courtesy of GENERAL MOTORS CORP.
Seat Climate Control Module X2 (KB6)

Pin Wire Circuit Function
1 0.35 PK 239 Ignition Voltage
2 0.35 GY 2434 Passenger Seat Cushion Temperature Sensor Signal
3 0.35 PK 2435 Low Reference
4 0.35 TN 2436 Passenger Seat Back Temperature Sensor Signal
5 0.35 TN 2482 Low Reference
6 - - Not Used
7 0.35 YE/BK 2079 Driver Seat Cushion Temperature Sensor Signal
8 0.35 YE 2080 Low Reference
9 0.35 D-BU 2425 Driver Seat Back Temperature Sensor Signal
10 0.35 PK 2426 Low Reference
Connector Part Information
  • Harness Type: Passenger Seat
  • OEM Connector: 15431080
  • Service Connector: 88988292
  • Description: 10-Way F Micro-Pack 64 Series (BK)
Terminal Part Information
  • Terminated Lead: 13575845
  • Release Tool: J-38125-215A
  • Diagnostic Test Probe: J-35616-64B (L-BU)
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: P/P
