Transfer Case Shift Control Module X1 (NQH or NP0)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

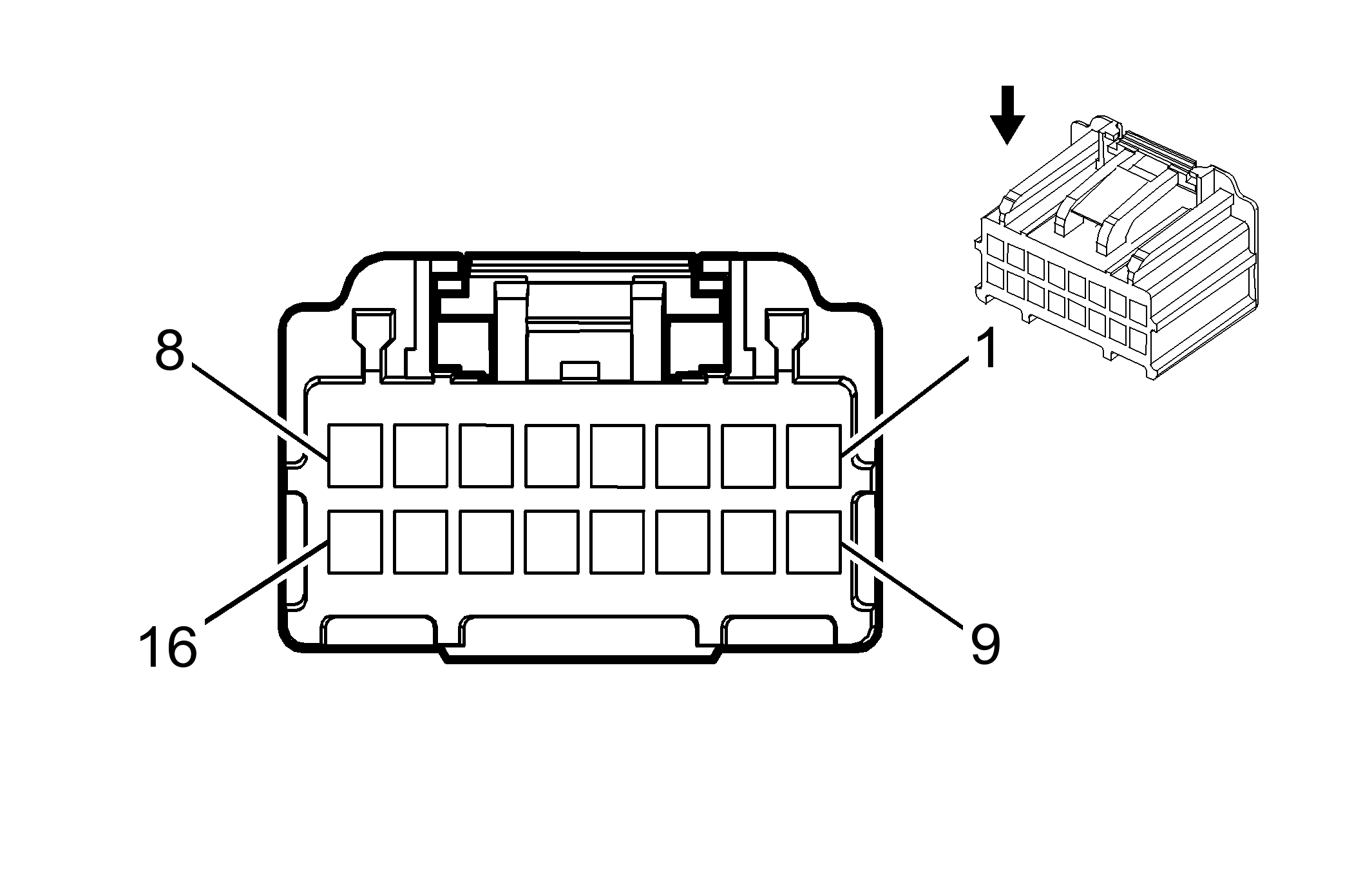

Transfer Case Shift Control Module X1 (NQH or NP0)
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| 1 | - | - | Not Used |
| 2 | 0.35 GY | 6029 | 5-Volt Reference |
| 3 | 0.35 D-BU/WH | 7473 | Transfer Case Encoder Signal |
| 4 | 0.5 OG/WH | 7477 | 5-Volt Reference |
| 5 | 0.35 BN | 1560 | 4WD Neutral Indicator Control (NQH) |
| 0.35 BN | 1560 | Not Used (NP0) | |
| 6 | 0.35 L-GN/BK | 1563 | 2H Indicator Control |
| 7 | 1 TN | 1569 | Lock Solenoid Control |
| 8 | - | - | Not Used |
| 9 | 0.35 WH/L-GN | 7475 | 8-Volt Reference |
| 10 | 0.35 PU | 7476 | Low Reference |
| 11 | 0.35 L-BU | 1693 | Switch Signal |
| 12 | 0.35 TN/BK | 1566 | 4H Indicator Control |
| 13 | 0.35 PU/WH | 1565 | 4L Indicator Control (NQH) |
| 0.35 PU/WH | 1565 | Not Used (NP0) | |
| 14 | 0.35 PK | 1561 | AWD Indicator Control |
| 15 | 0.35 GY/BK | 1570 | Axle Actuator - Control |
| 16 | - | - | Not Used |
Connector Part Information
|
Terminal Part Information
|
