Transfer Case Shift Control Module X2 (NQH or NP0)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

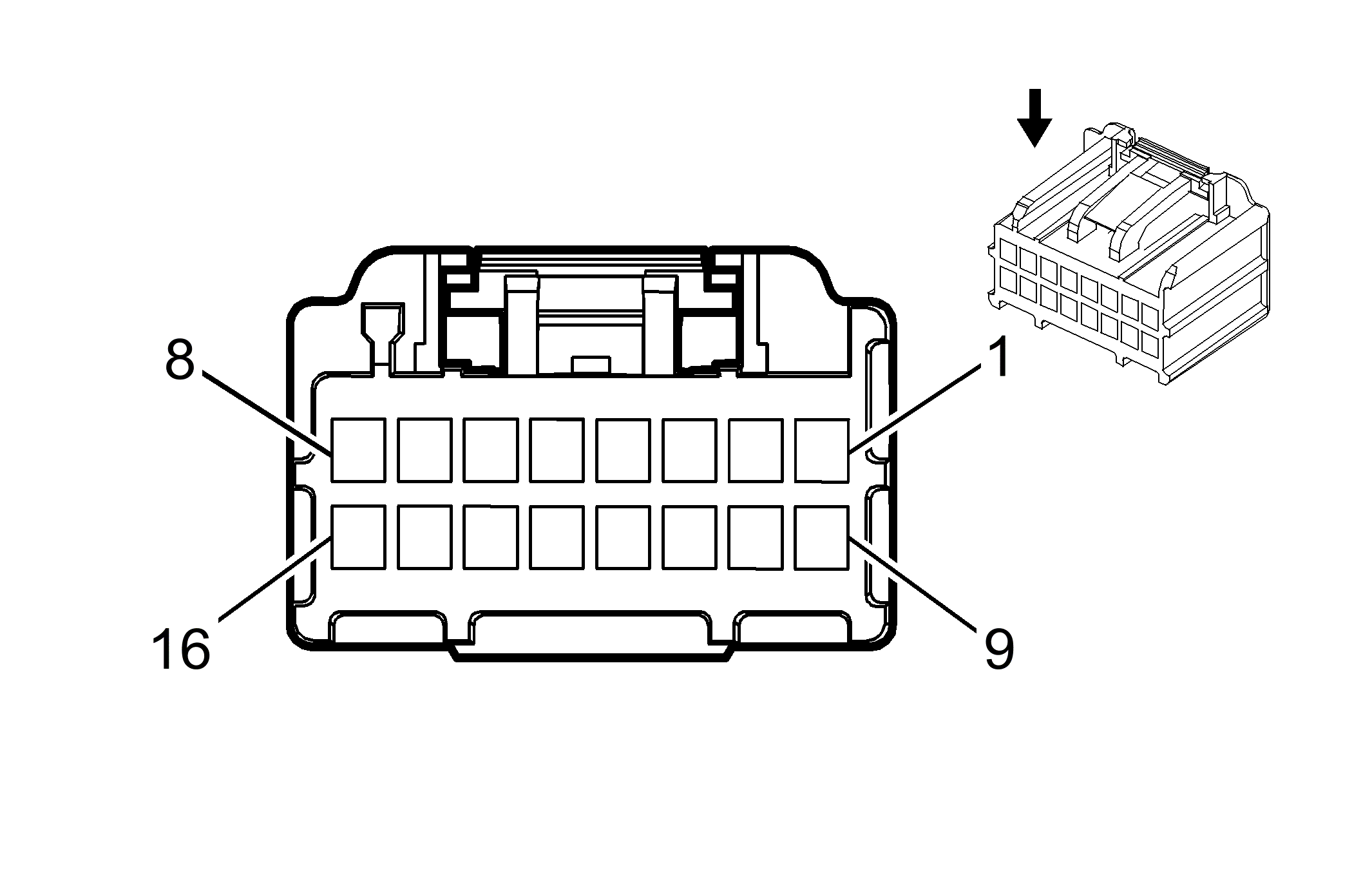

Fig 1: Transfer Case Shift Control Module X2 (NQH or NP0) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1-2	-	-	Not Used
3	0.5 TN/WH	1695	Axle Switch Signal
4	0.5 TN	2501	High Speed GMLAN Serial Data Bus -
5	0.5 TN/BK	2500	High Speed GMLAN Serial Data Bus +
6	0.35 PK	239	Ignition Voltage
7-8	-	-	Not Used
9	0.5 YE/BK	7478	Low Reference
10	0.35 D-BU	5985	Serial Data Wake-Up Signal
11	0.5 L-GN	7479	Rotational Position Sensor Signal
12	0.5 TN	2501	High Speed GMLAN Serial Data Bus -
13	0.5 TN/BK	2500	High Speed GMLAN Serial Data Bus +
14	0.35 YE	7474	Transfer Case Encoder Signal
15-16	-	-	Not Used

Connector Part Information

Harness Type: Instrument Panel
OEM Connector: 13520384
Service Connector: 13577631
Description: 16-Way F 1.5 Series (RU)

Terminal Part Information

Terminated Lead: 13575480
Release Tool: J-38125-29
Diagnostic Test Probe: J-35616-2A (GY)
Terminal/Tray: 13526680/Not Available
Core/Insulation Crimp: Not Available
