Transfer Case Shift Control Module X3 (NQH or NP0)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

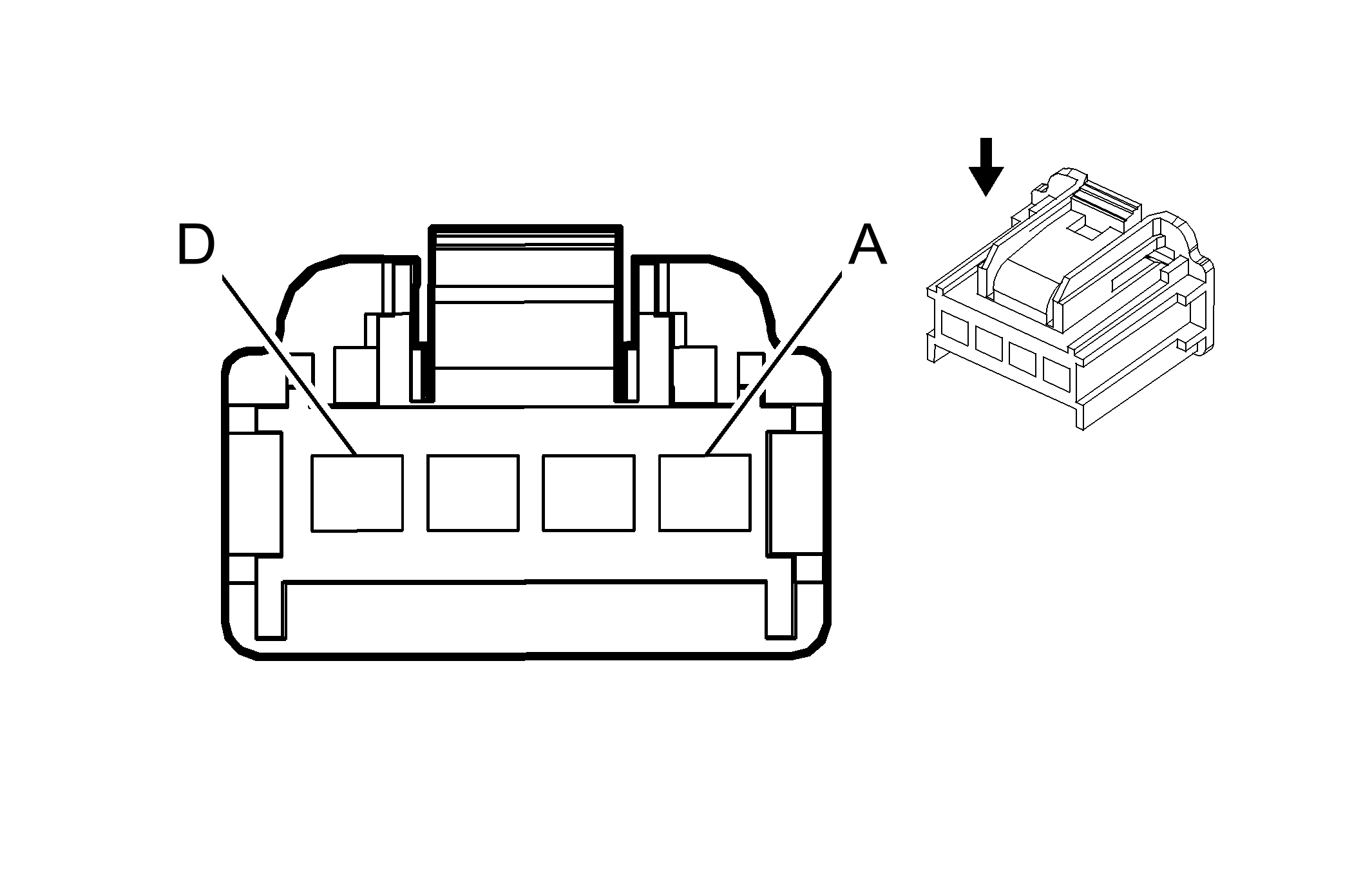

Fig 1: Transfer Case Shift Control Module X3 (NQH or NP0) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
A	3 OG	1553	Motor Control B
B	3 TN	1552	Motor Control A
C	3 RD/BK	1342	Battery Positive Voltage
D	3 BK	550	Ground

Connector Part Information

Harness Type: Instrument Panel
OEM Connector: 13660815
Service Connector: 13577626
Description: 4-Way F GT 280 Series (L-GY)

Terminal Part Information

Terminated Lead: 13575499
Release Tool: J-38125-29
Diagnostic Test Probe: J-35616-4A (PU)
Terminal/Tray: 13673613/Not Available
Core/Insulation Crimp: Not Available
