Turn Signal/Multifunction Switch X4 (C25)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

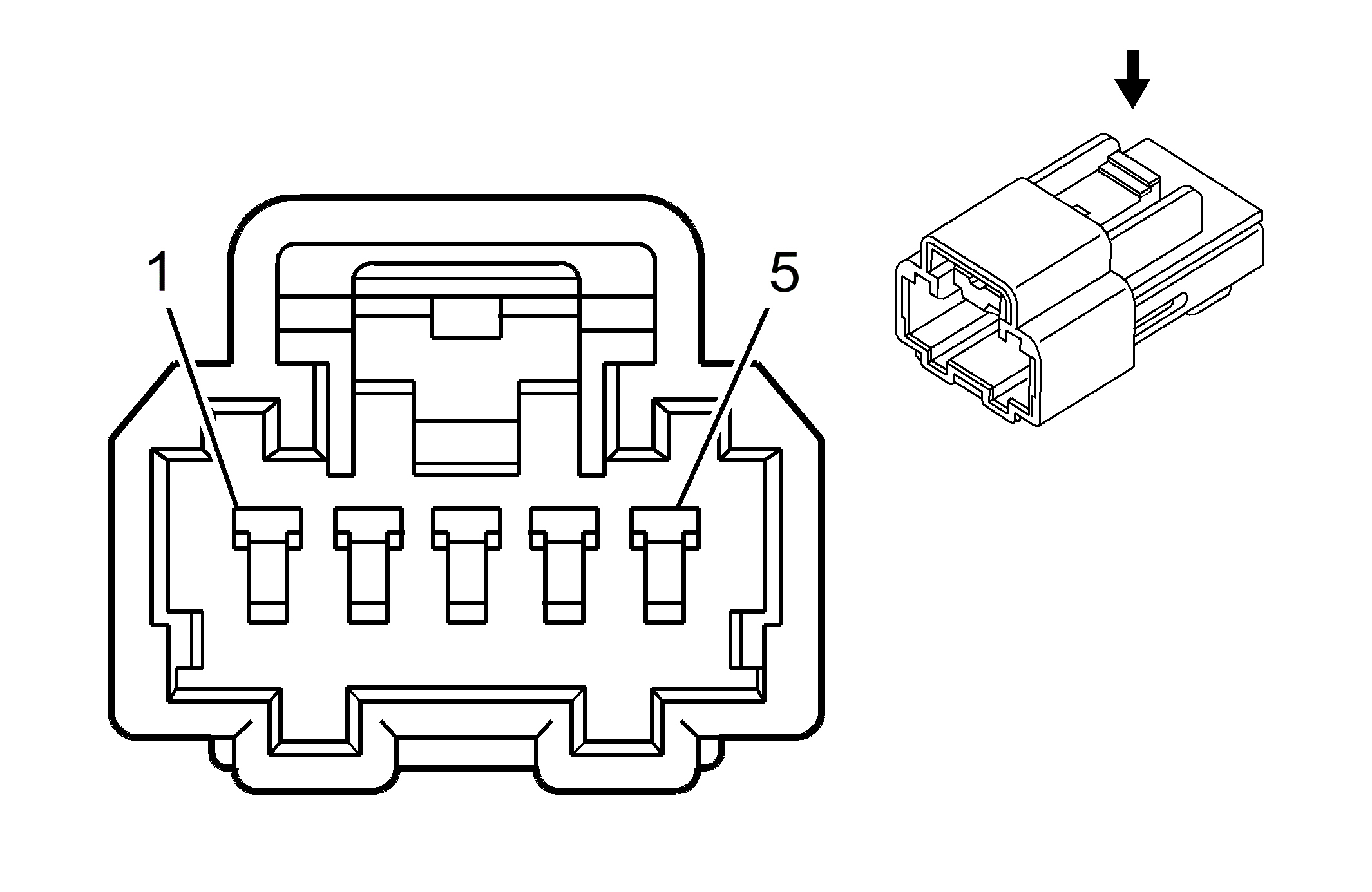

Fig 1: Turn Signal/Multifunction Switch X4 (C25) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	WH	2283	Rear Wiper/Washer Switch Signal
2	GY	391	Rear Window Wiper Switch Signal
3	L-GN	2270	Rear Window Washer Relay Control
4-5	-	-	Not Used

Connector Part Information

Harness Type: Steering Column
OEM Connector: 15418023
Service Connector: Service by Harness - See Part Catalog
Description: 5-Way M Unsealed (BK)

Terminal Part Information

Terminated Lead: Service by Harness - See Part Catalog
Release Tool: 12094429
Diagnostic Test Probe: J-35616-13
Terminal/Tray: SHCMW-A03T/Tray 20
Core/Insulation Crimp: J/J
