Accessory AC/DC Power Control Module X1 (HP2)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

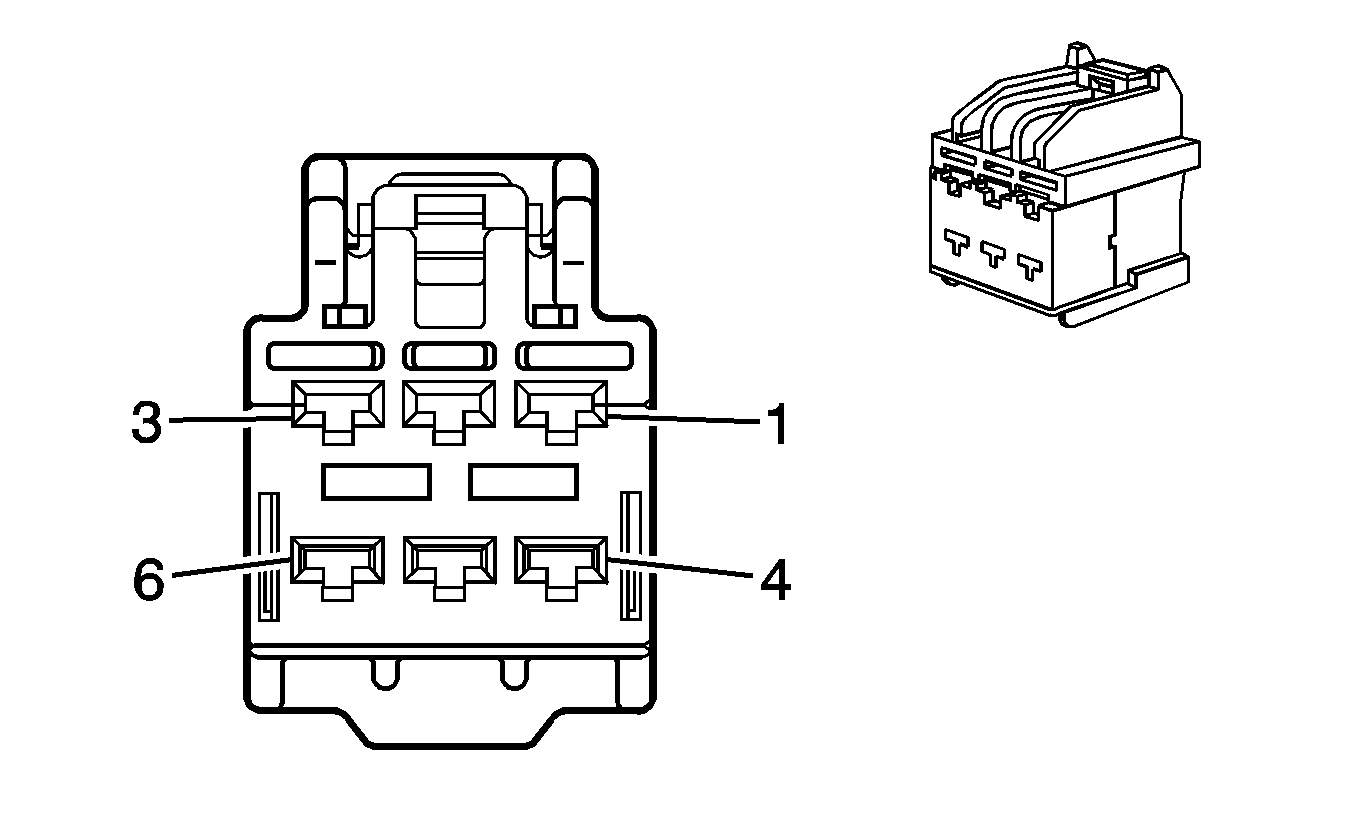

Fig 1: Accessory AC/DC Power Control Module X1 (HP2) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	-	-	Not Used
2	0.8 WH	6807	Plug Switch Signal
3	-	-	Not Used
4	0.8 BK	5683	110 VAC +
5	-	-	Not Used
6	0.8 D-BU	5685	110 VAC -

Connector Part Information

Harness Type: AC Outlet Jumper
OEM Connector: 6098-4542
Service Connector: 19153185
Description: 6-Way F 2.8 Series (OG)

Terminal Part Information

Terminal/Tray: Service by Harness - See Part Catalog
Core/Insulation Crimp: Not Available
Release Tool/Test Probe: Not Available
