Accessory DC Power Control Module X1 (HP2)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

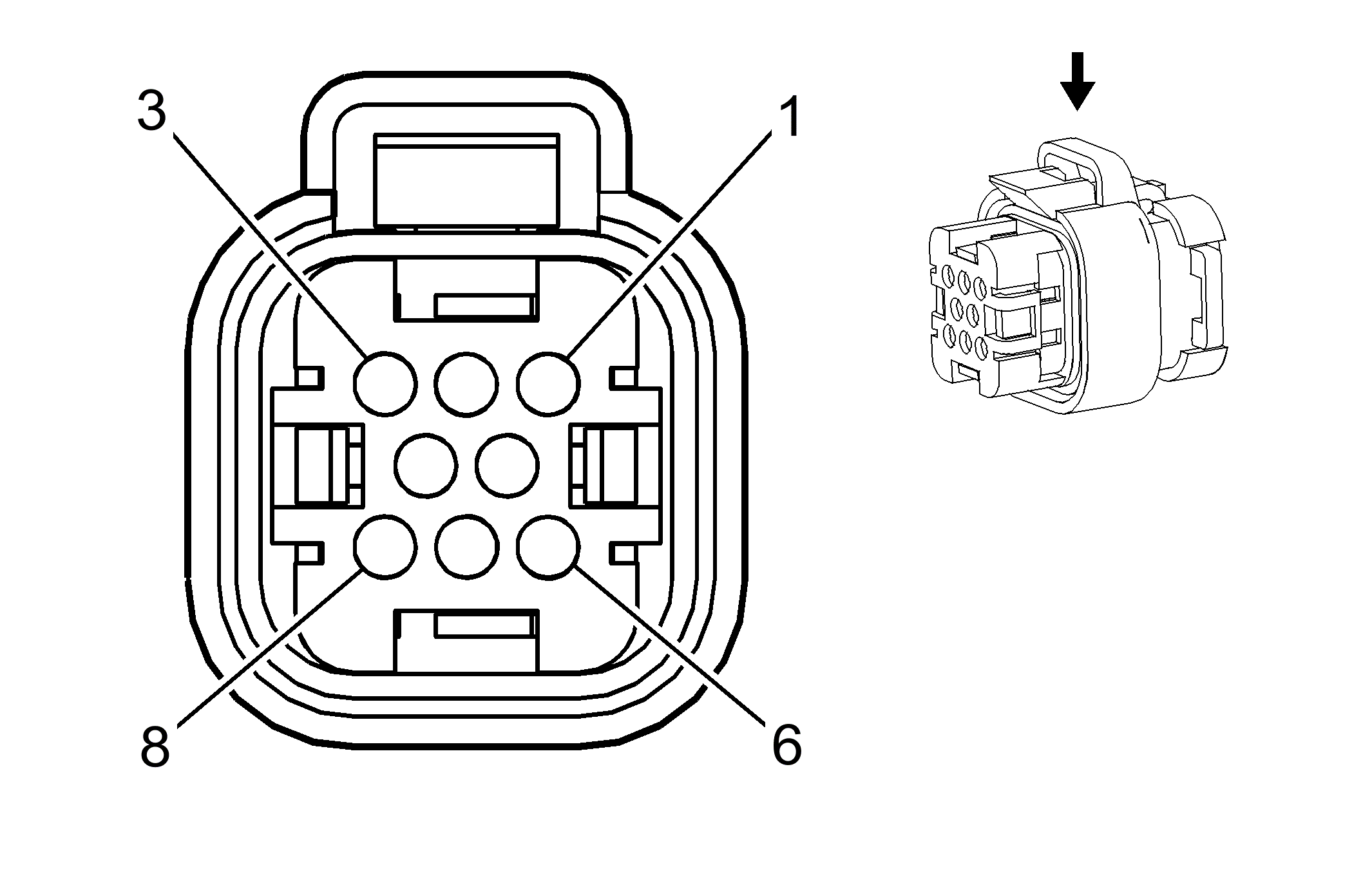

Fig 1: Accessory DC Power Control Module X1 (HP2) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.8 L-BU	6106	PTLAN -
2	0.8 D-BU	6105	PTLAN +
3	0.8 D-BU	932	APM Wake-Up Signal
4	0.8 L-BU	6106	PTLAN -
5	0.8 D-BU	6105	PTLAN +
6-8	-	-	Not Used

Connector Part Information

Harness Type: Engine
OEM Connector: 15485525
Service Connector: 19179285
Description: 8-Way F Sealed (BK)

Terminal Part Information

Terminated Lead: Service by Connector Assembly - 19179285
Release Tool: Not Available
Diagnostic Test Probe: J-35616-6 (BN)
Terminal/Tray: 770520-1/25
Core/Insulation Crimp: E/A
