Accessory DC Power Control Module X2 (HP2)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

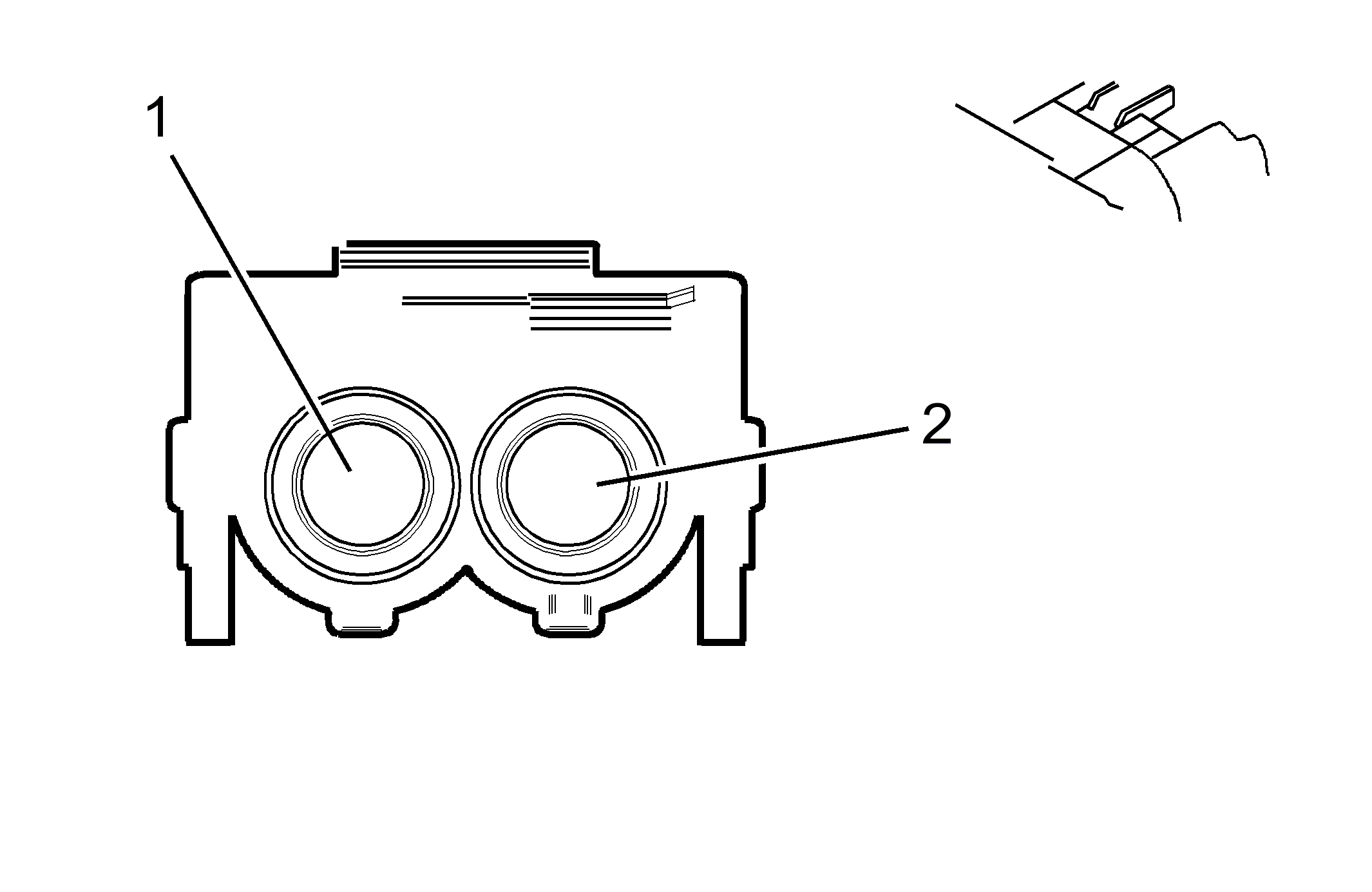

Fig 1: Accessory DC Power Control Module X2 (HP2) Connector End View
GM2042486Courtesy of GENERAL MOTORS CORP.
Accessory DC Power Control Module X2 (HP2)

Pin Wire Circuit Function
1 BU - 42V- with Shield
2 BU - 42V+ with Shield
Connector Part Information
  • OEM Connector: PE147794
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 2-Way F 630 Series, Sealed (GY)
Terminal Part Information
  • Terminal/Tray: Service by Component Assembly - See Part Catalog
  • Core/Insulation Crimp: Not Available
  • Release Tool/Test Probe: Not Available
