Accessory DC Power Control Module X3 (HP2)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

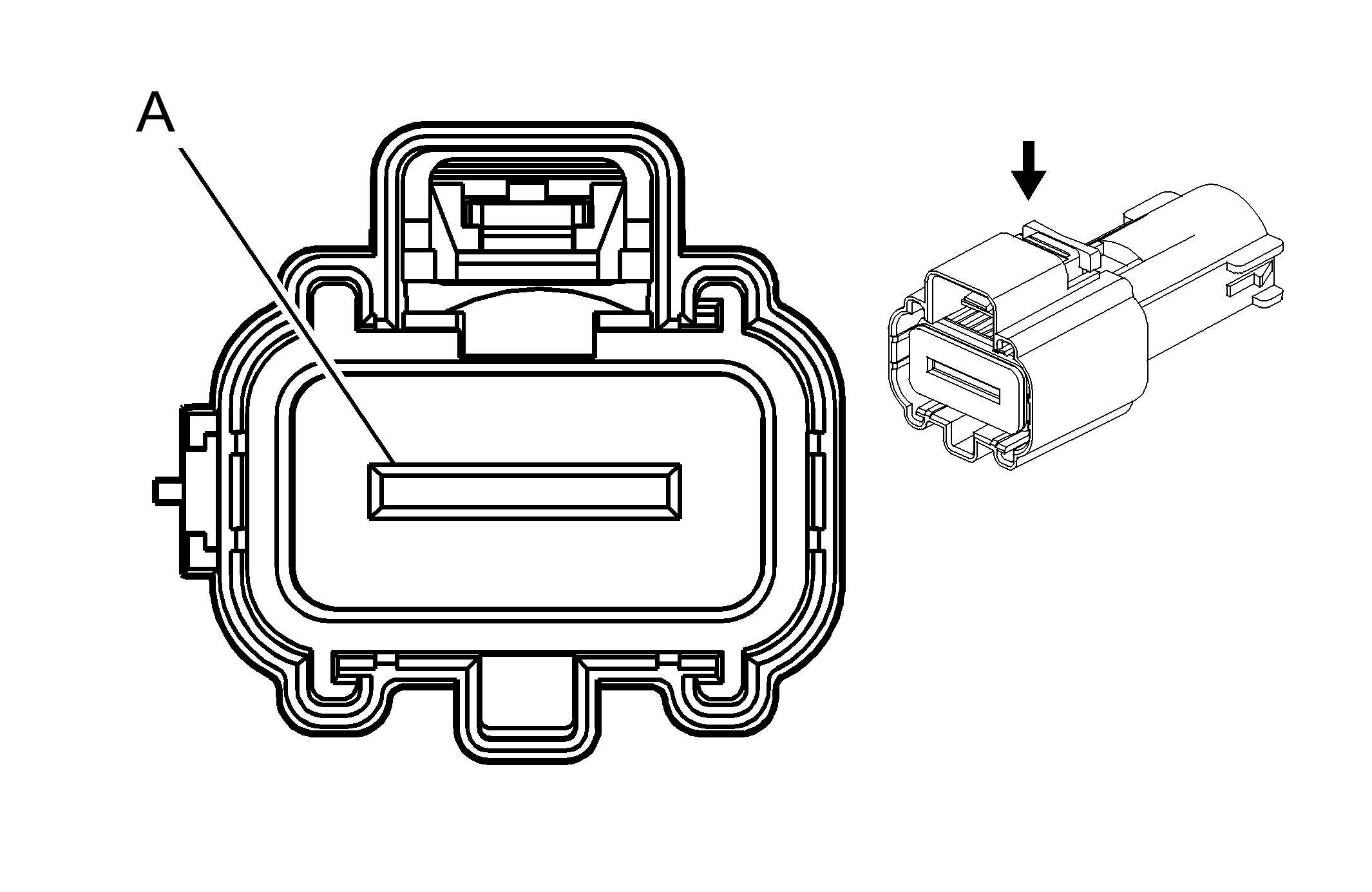

Fig 1: Accessory DC Power Control Module X3 (HP2) Connector End View
GM2042479Courtesy of GENERAL MOTORS CORP.
Accessory DC Power Control Module X3 (HP2)

Pin Wire Circuit Function
A 62.0 OG 2 12V Battery Positive Voltage
Connector Part Information
  • Harness Type: Battery Cable
  • OEM Connector: 13611153
  • Service Connector: Service by Harness- See Part Catalog
  • Description: 1-Way F Power Pack 2000, Sealed (BK)
Terminal Part Information
  • Terminal/Tray: Service by Harness- See Part Catalog
  • Core/Insulation Crimp: Not Available
  • Release Tool/Test Probe: Not Available
