Automatic Transmission Internal Mode Switch (IMS) (M99)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

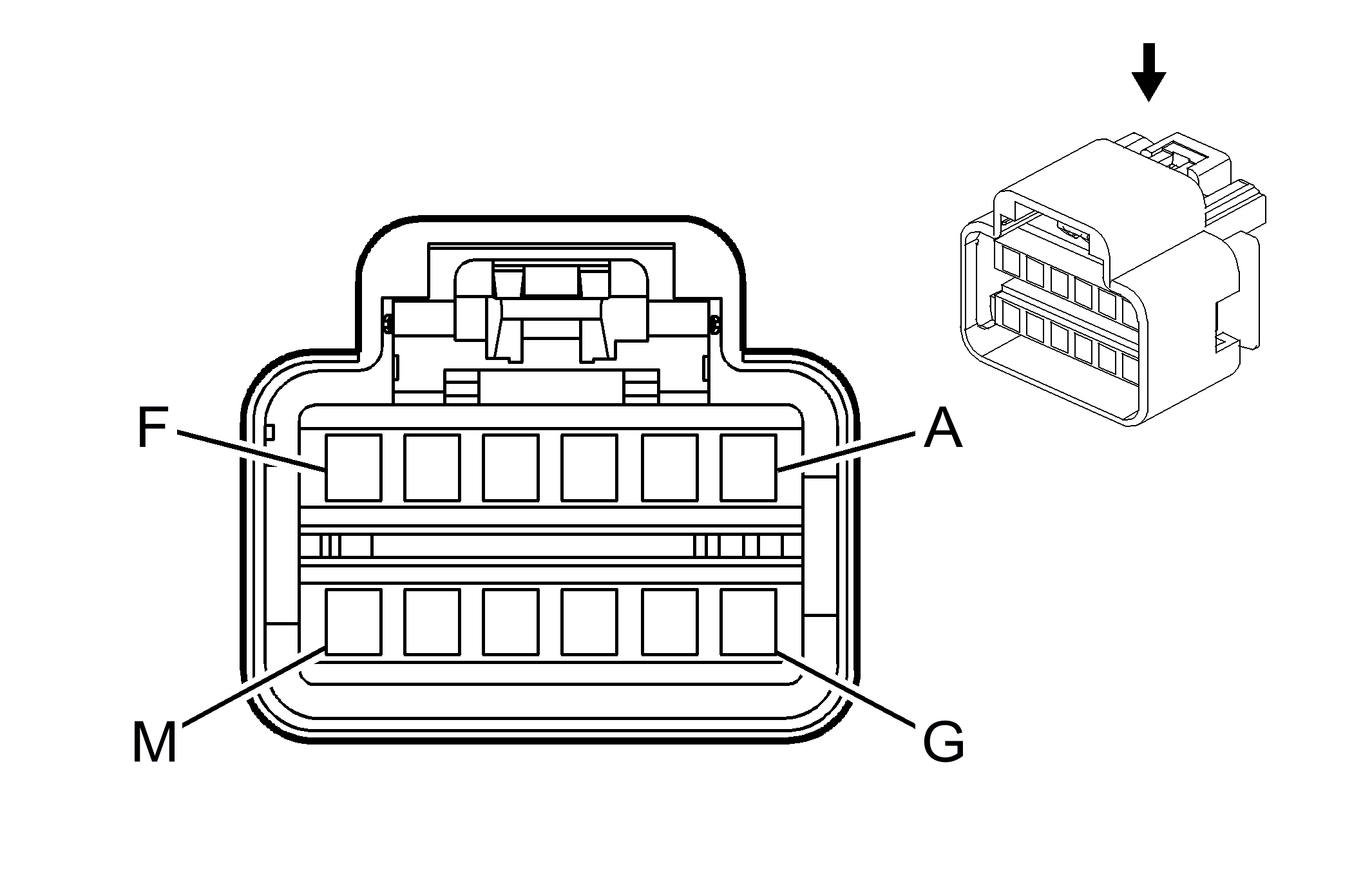

Fig 1: Automatic Transmission Internal Mode Switch (IMS) (M99) Connector End View
GM1711007Courtesy of GENERAL MOTORS CORP.
Automatic Transmission Internal Mode Switch (IMS) (M99)

Pin Wire Circuit Function
A - - Not Used
B 0.5 GN - Transmission Range Switch Signal A
C 0.5 RD - Transmission Range Switch Cignal B
D 0.5 YE - Tranmission Range Switch Signal C
E 0.5 BK - Transmission Range Switch Signal P
F 0.5 GY - Ground
G 0.5 WH - Park/Neutral Switch Signal
H 0.5 YE 904 Internal Mode Switch Direction Signal R1
J 0.5 GY 904 Internal Mode Switch Direction Signal R2
K 0.5 BN 904 Internal Mode Switch Direction Signal D1
L 0.5 L-GN 904 Internal Mode Switch Direction Signal D2
M 0.5 PU 904 Internal Mode Switch Direction Signal - Start
Connector Part Information
  • Harness Type: Internal Transmission
  • OEM Connector:29543836
  • Service Connector: Service by Harness - See Parts Catalog
  • Description: 12-Way F
Terminal Part Information
  • Terminated Lead: Service by Harness - See Part Catalog
  • Release Tool: Pending
  • Diagnostic Test Probe: Pending
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
