Automatic Transmission Shift Lever (MYC, MYD or M99)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

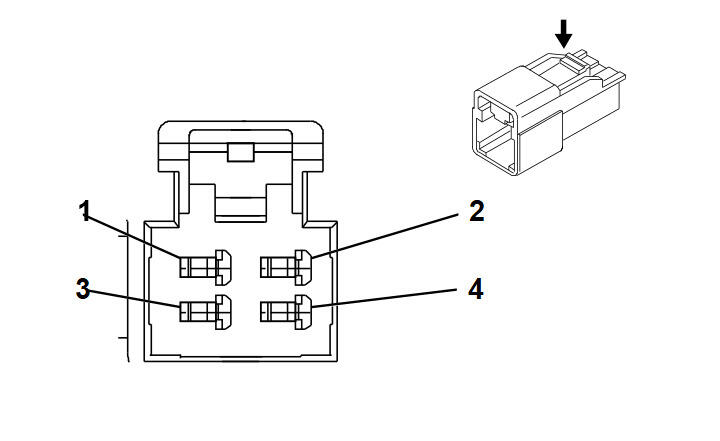

Fig 1: Automatic Transmission Shift Lever (MYC, MYD or M99) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.35 L-BU	553	Tow/Haul Signal (except M99)
2	0.5 BK/WH	1851	Tow/Haul Ground (except M99)
3	0.35 PU	5526	TU/TD Signal
4	0.35 PK	1444	12-Volt Reference

Connector Part Information

Harness Type: Steering Column
OEM Connector: HCMDWSB-04-S
Service Connector: Service by Harness- See Part Catalog
Description: 4 Way M HCM Series (WH)

Terminal Part Information

Terminal/Tray: Service by Harness- See Part Catalog
Core/Insulation Crimp: Not Available
Release Tool/Test Probe: Not Available
