Cellular Telephone Microphone (UE1)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

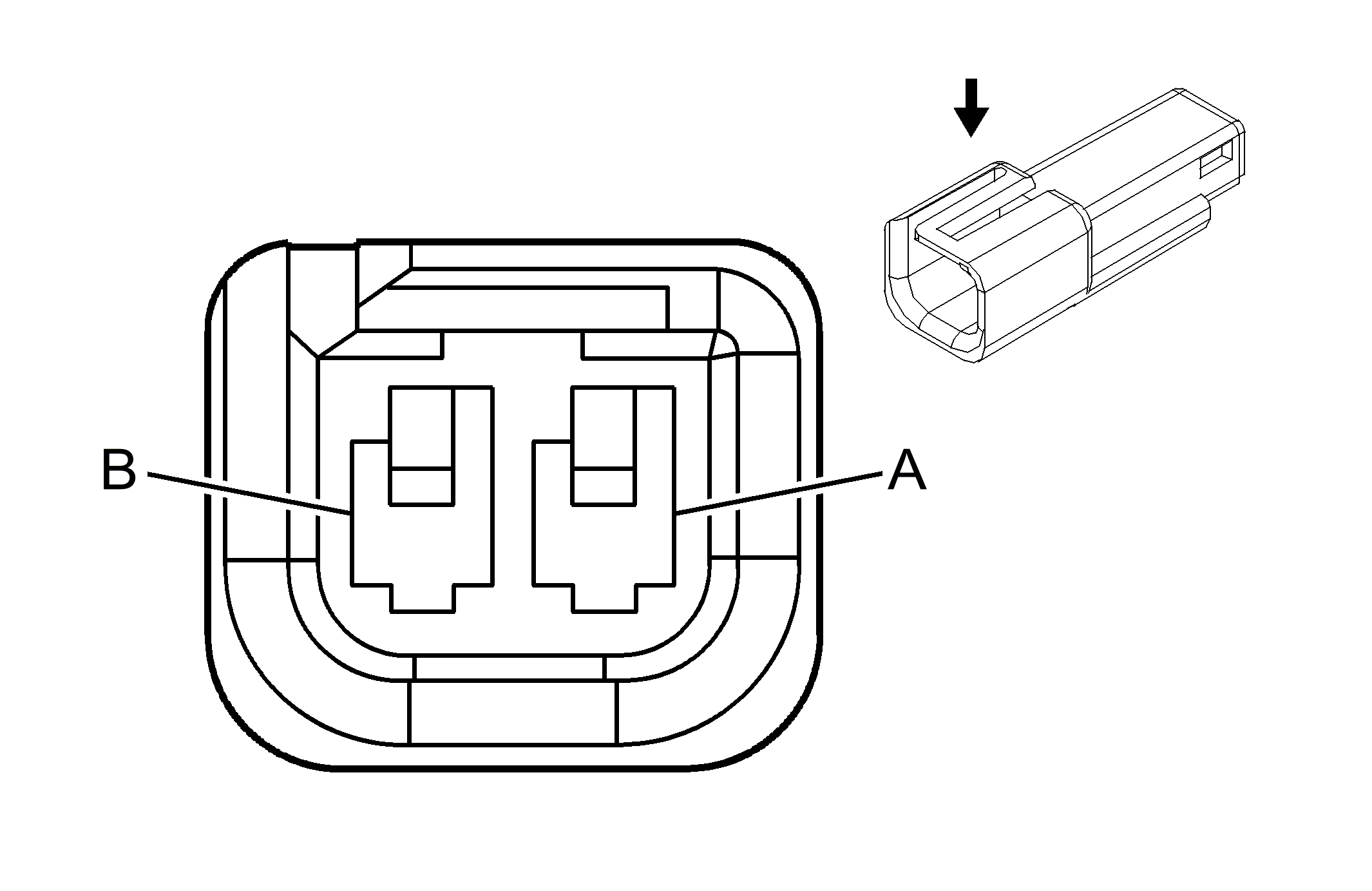

Fig 1: Cellular Telephone Microphone (UE1) Connector End View
GM1715227Courtesy of GENERAL MOTORS CORP.
Cellular Telephone Microphone (UE1)

Pin Wire Circuit Function
A 0.35 D-GN 654 Low Reference
B 0.35 GY 655 Cellular Microphone Signal
Connector Part Information
  • Harness Type: Overhead Console
  • OEM Connector: 12089868
  • Service Connector: 12085481
  • Description: 2-Way M Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminal/Tray: 12047581/2
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 12094429/J-35616-3 (GY)
