Clock (Z75)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

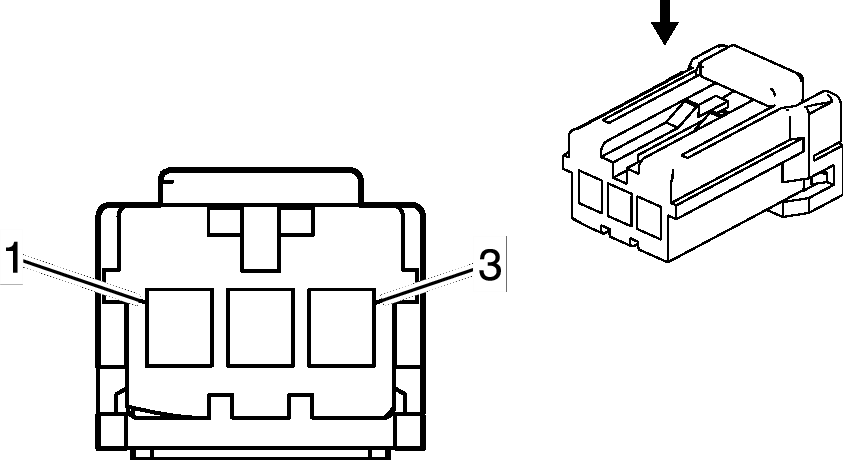

Fig 1: Clock (Z75) Connector End View
GM1715243Courtesy of GENERAL MOTORS CORP.
Clock (Z75)

Pin Wire Circuit Function
1 0.5 RD/WH 340 Battery Positive Voltage
2 0.5 BK 1050 Ground
3 0.35 YE 6817 LED Backlight Dimming Control
Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 13579122
  • Service Connector: 13578563
  • Description: 3-Way F Multilock 070 Series (WH)
Terminal Part Information
  • Terminated Lead: Service by Connector Assembly- 13578563
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-33 (YE)
  • Terminal/Tray: 173630-7/7
  • Core/Insulation Crimp: E/4
