Control Solenoid Valve Assembly X2 (M99)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

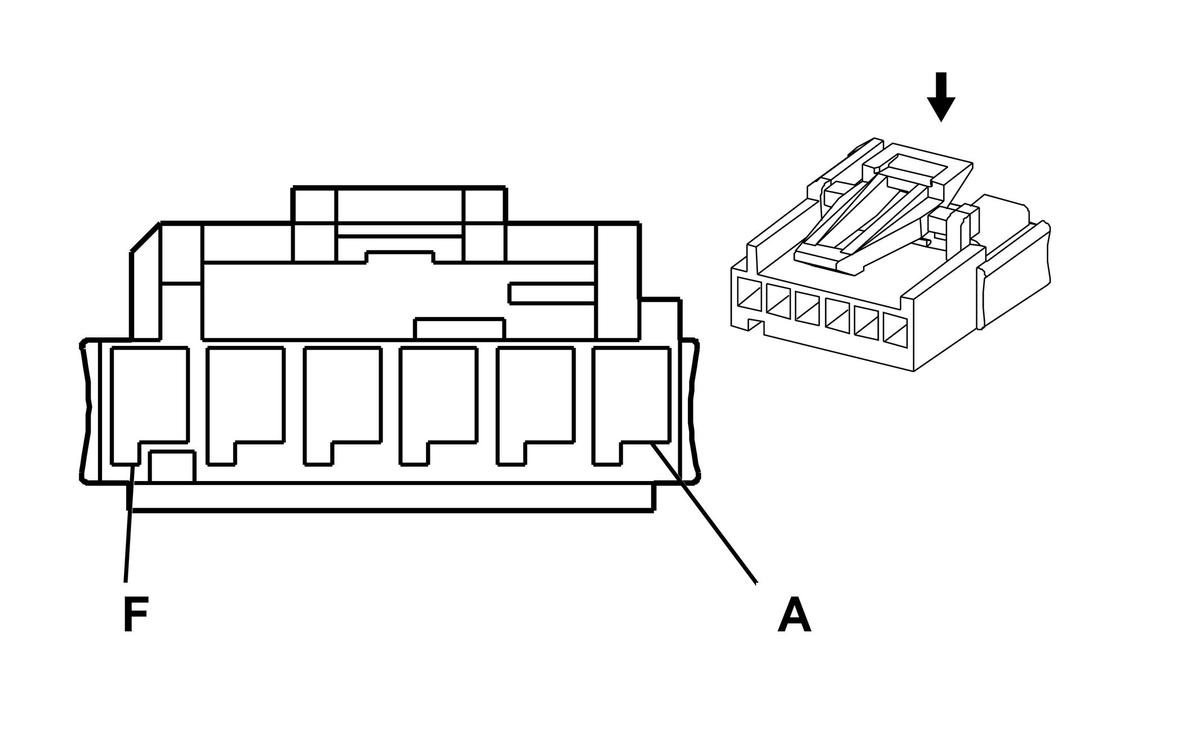

Fig 1: Control Solenoid Valve Assembly X2 (M99) Connector End View
GM347262Courtesy of GENERAL MOTORS CORP.
Control Solenoid Valve Assembly X2 (M99)

Pin Wire Circuit Function
A 0.5 GY - Ground
B 0.5 BK - Transmission Range Switch Signal P
C 0.5 YE - Transmission Range Switch Signal C
D 0.5 RD - Transmission Range Switch Signal B
E 0.5 GN - Transmission Range Switch Signal A
F 0.5 WH - Park/Neutral Switch Signal
Connector Part Information
  • Harness Type: Internal Transmission
  • OEM Connector: 2953908
  • Service Connector: Service by Harness - See Parts Catalog
  • Description: 6-Way F
Terminal Part Information
  • Terminated Lead: Service by Harness - See Part Catalog
  • Release Tool: Pending
  • Diagnostic Test Probe: Pending
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
