Digital Video Disc (DVD) Control Module X6 (AYE)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

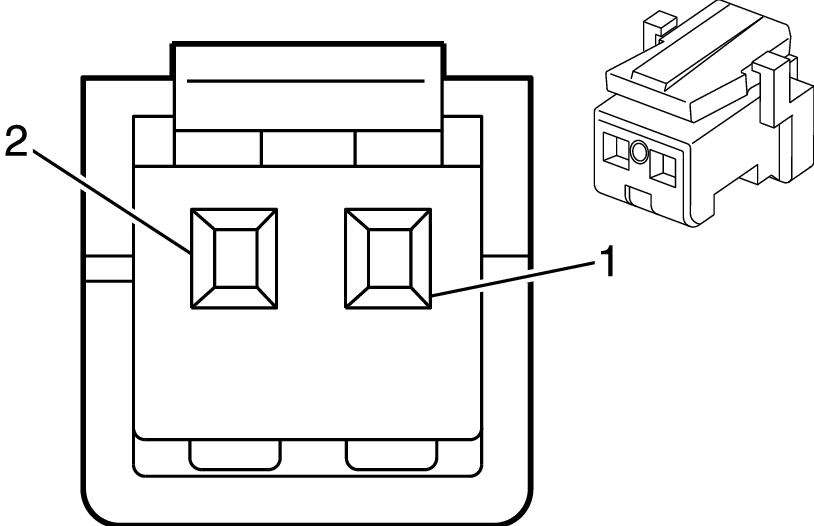

Fig 1: Digital Video Disc (DVD) Control Module X6 (AYE) Connector End View
GM2089848Courtesy of GENERAL MOTORS CORP.
Digital Video Disc (DVD) Control Module X6 (AYE)

Pin Wire Circuit Function
1 YE - FM Antenna
2 BK - FM Antenna
Connector Part Information
  • Harness Type: Headrest DVD FM Antenna
  • OEM Connector: Not Available
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 2-Way F (WH)
Terminal Part Information
  • Terminal/Tray: Service by Harness - See Part Catalog
  • Core/Insulation Crimp: Not Available
  • Release Tool/Test Probe: Not Available
