Door Lock/Window Switch - Passenger X7

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

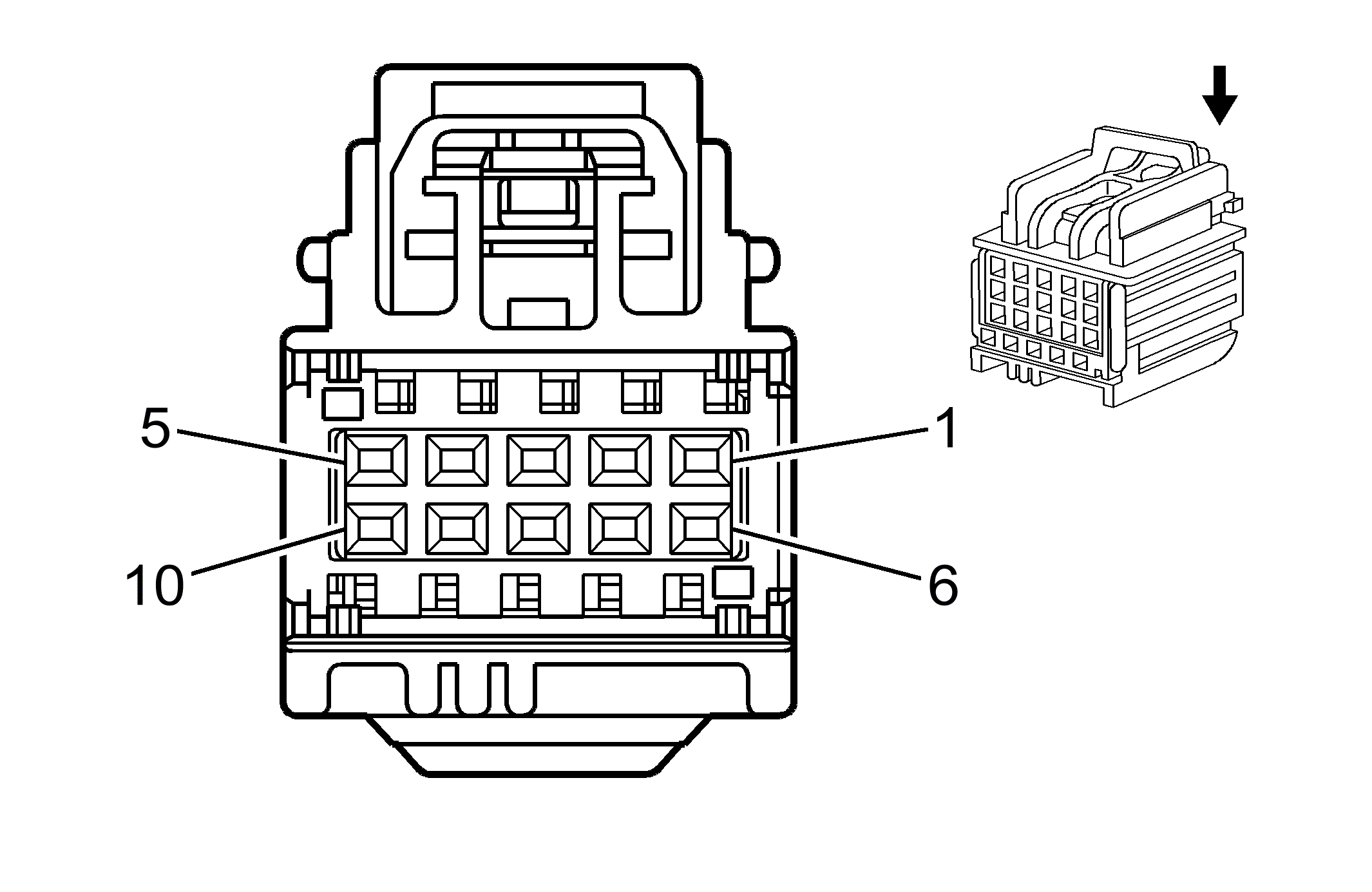

Fig 1: Door Lock/Window Switch - Passenger X7 Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.35 YE	6804	Passenger Folding Mirror Motor Retract Control (DL3 or DR4)
2	0.35 L-BU	6805	Passenger Folding Mirror Motor Extend Control (DL3 or DR4)
3	0.35 OG/WH	5997	Passenger Exterior Courtesy Lamp Control
4	0.35 BN	787	Passenger Mirror Vertical Position Sensor Signal (DL3 or DR4)
5	0.35 L-BU/BK	785	Passenger Mirror Horizontal Position Sensor Signal (DL3 or DR4)
6	0.35 OG/WH	5999	Low Reference (DL3 or DR4)
7	0.35 PU	674	5-Volt Reference
8	0.35 PK	5861	Passenger Side Object Detection LED Signal (UFT)
9	-	-	Not Used
10	0.35 L-GN	675	Low Reference (DL3 or DR4)

Connector Part Information

OEM Connector: 15491260
Service Connector: 15127040
Description: 10-Way F Kaizen 0.64 Series (WH)

Terminal Part Information

Terminal/Tray: 15359541/4
Core/Insulation Crimp: M/M
Release Tool/Test Probe: 15381651-2/J-35616-64B (L-BU)
