Drive Motor Generator Battery Control Module X4 (HP2)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

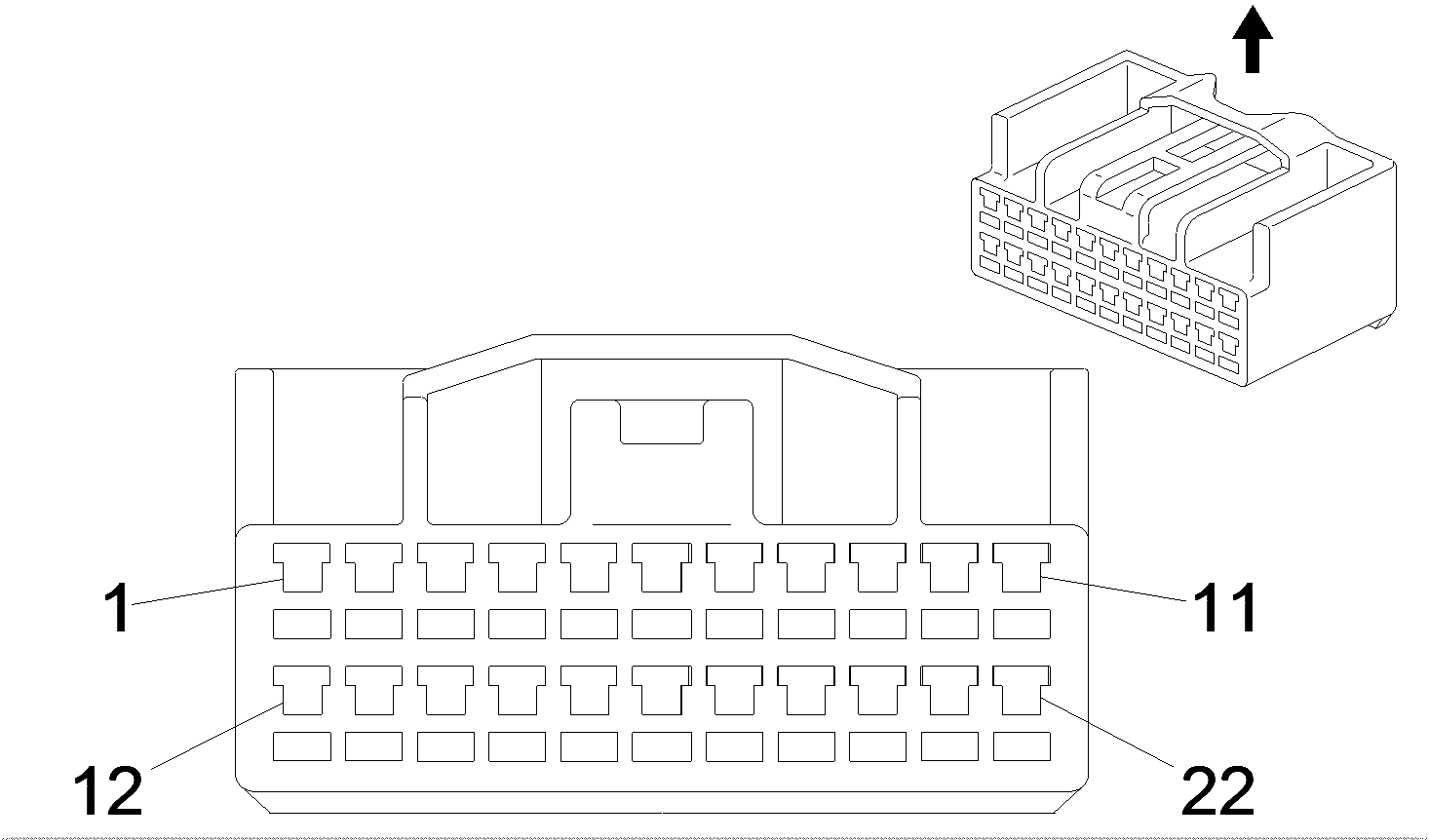

Fig 1: Drive Motor Generator Battery Control Module X4 (HP2) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	-	-	Not Used
2	YE	-	Voltage Monitor 19
3	D-BU	-	Voltage Monitor 17
4	D-BU/WH	-	Voltage Monitor 15
5	YE/BK	-	Voltage Monitor 13
6	D-BU/RD	-	Voltage Monitor 11
7	WH	-	Voltage Monitor 9
8	RD	-	Voltage Monitor 7
9	L-GN/WH	-	Voltage Monitor 5
10	L-GN	-	Voltage Monitor 3
11	L-GN/RD	-	Voltage Monitor 1
12	PK	-	Voltage Monitor 20
13	PU	-	Voltage Monitor 18
14	YE/RD	-	Voltage Monitor 16
15	RD/BK	-	Voltage Monitor 14
16	D-BU/BK	-	Voltage Monitor 12
17	BK/WH	-	Voltage Monitor 10
18	L-GN/BK	-	Voltage Monitor 8
19	OG	-	Voltage Monitor 6
20	GY	-	Voltage Monitor 4
21	GY/BK	-	Voltage Monitor 2
22	BK	-	Low Reference

Connector Part Information

Harness Type: Drive Motor Battery Voltage and Temperature Monitor
OEM Connector: 7283-5834-51
Service Connector: Service by Harness - See Part Catalog
Description: 22-Way F 040-III/Class II Series (OG)

Terminal Part Information

Terminal/Tray: 7116-4231-08/14
Core/Insulation Crimp: Not Available
Release Tool/Test Probe: 15315247/J-35616-64B (L-BU)
