Drive Motor with Generator Assembly - 2nd Position (HP2)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

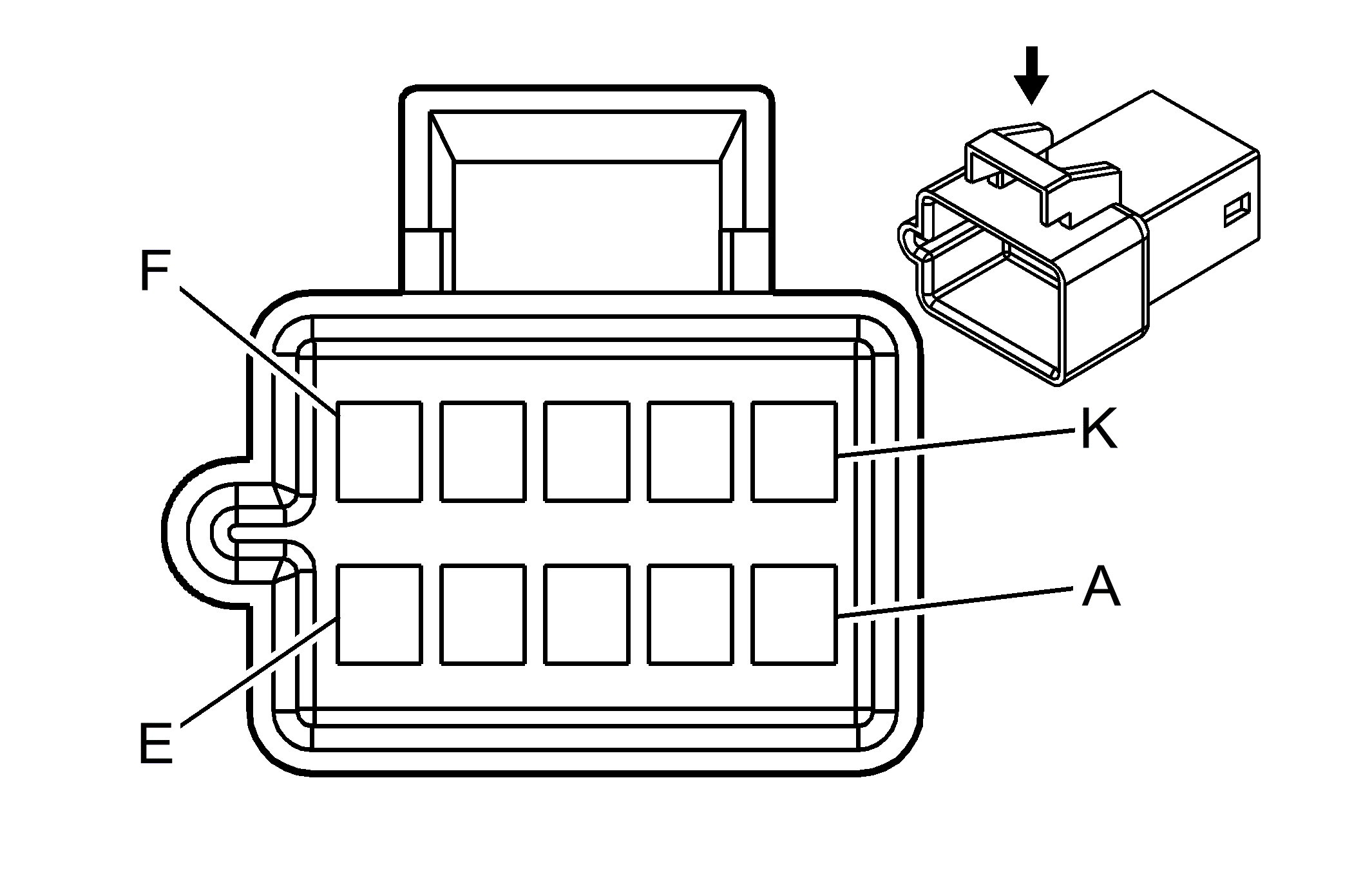

Fig 1: Drive Motor with Generator Assembly - 2nd Position (HP2) Connector End View
GM511671Courtesy of GENERAL MOTORS CORP.
Drive Motor with Generator Assembly - 2nd Position (HP2)

Pin Wire Circuit Function
A 0.5 GY 9005 Motor 2 Resolver Sensor Exciter Negative
B 0.5 D-BU 9004 Motor 2 Resolver Sensor Exciter Positive
C 0.5 L-BU 9008 Motor 2 Resolver Sensor 1
D 0.5 D-GN 9006 Motor 2 Resolver Sensor 2
E 0.5 GY 9009 Motor 2 Resolver Sensor 3
F 0.5 BN 9007 Motor 2 Resolver Sensor 4
G 0.5 L-GN 9015 Motor 2 Temperature Sensor Signal
H 0.5 YE 9016 Motor 2 Temperature Sensor Return
J 0.5 BARE* - Drain
K - - Not Used
Connector Part Information
  • Harness Type: Internal Transmission
  • OEM Connector: 2954348
  • Service Connector: Service by Harness - See Parts Catalog
  • Description: 10-Way F
Terminal Part Information
  • Terminated Lead: Service by Harness - See Part Catalog
  • Release Tool: Pending
  • Diagnostic Test Probe: Pending
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
