Evaporative Emissions (EVAP) Canister Vent Solenoid Valve

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

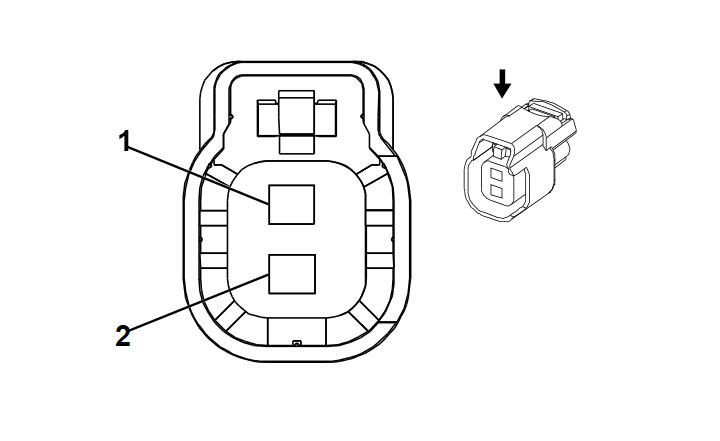

Fig 1: Evaporative Emissions (EVAP) Canister Vent Solenoid Valve Connector End View
GM2422378Courtesy of GENERAL MOTORS CORP.
Evaporative Emissions (EVAP) Canister Vent Solenoid Valve

Pin Wire Circuit Function
1 0.5 WH 1310 EVAP Canister Vent Solenoid Control
2 0.5 RD/WH 1840 Battery Positive Voltage
Connector Part Information
  • Harness Type: Chassis
  • OEM Connector: 13771883
  • Service Connector: 13579002
  • Description: 2-Way F 1.5 Series, Sealed (BK)
Terminal Part Information
  • Terminated Lead: Service by Connector Assembly- 13579002
  • Release Tool: J-38125-11A
  • Diagnostic Test Probe: J-35616-2A (GY)
  • Terminal/Tray: 7116-4102-08/9
  • Core/Insulation Crimp: E/1
