Memory Seat Module (MSM) X1 (AN3)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

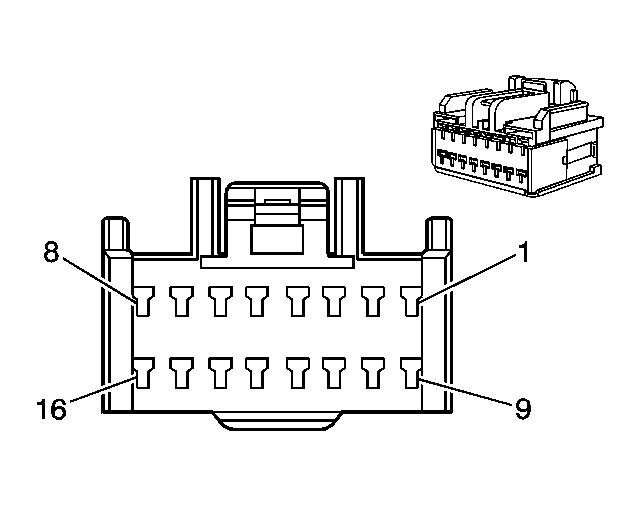

Fig 1: Memory Seat Module (MSM) X1 (AN3) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire Color	Circuit	Function
1	0.35 PU	2424	Ground (without KB6)
2-3	-	-	Not Used
4	0.35 L-BU	2433	Ground (without KB6)
5	-	-	Not Used
6	0.35 D-BU	2479	Heated Seat Cushion Element Control (without KB6)
7-8	-	-	Not Used
9	1 TN	285	Driver Seat Horizontal Motor Forward Control
10	1 L-GN	284	Driver Seat Horizontal Motor Rearward Control
11	0.35 L-GN	2078	Ground (without KB6)
12	1 D-GN	286	Driver Seat Front Vertical Motor Up Control
13	1 D-BU	287	Driver Seat Front Vertical Motor Down Control
14	0.35 PK	2077	Heated Seat Cushion Element Control (without KB6)
15	1 YE	282	Driver Seat Rear Vertical Motor Up Control
16	1 L-BU	283	Driver Seat Rear Vertical Motor Down Control

Connector Part Information

OEM: 6098-4611
Service: 15134091
Description: 16-Way F (BK)

Terminal Part Information

Terminal/Tray: 8240-0128/22
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: 15315247/J-35616-2A (GY)
