Body Control Module (BCM) C4

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

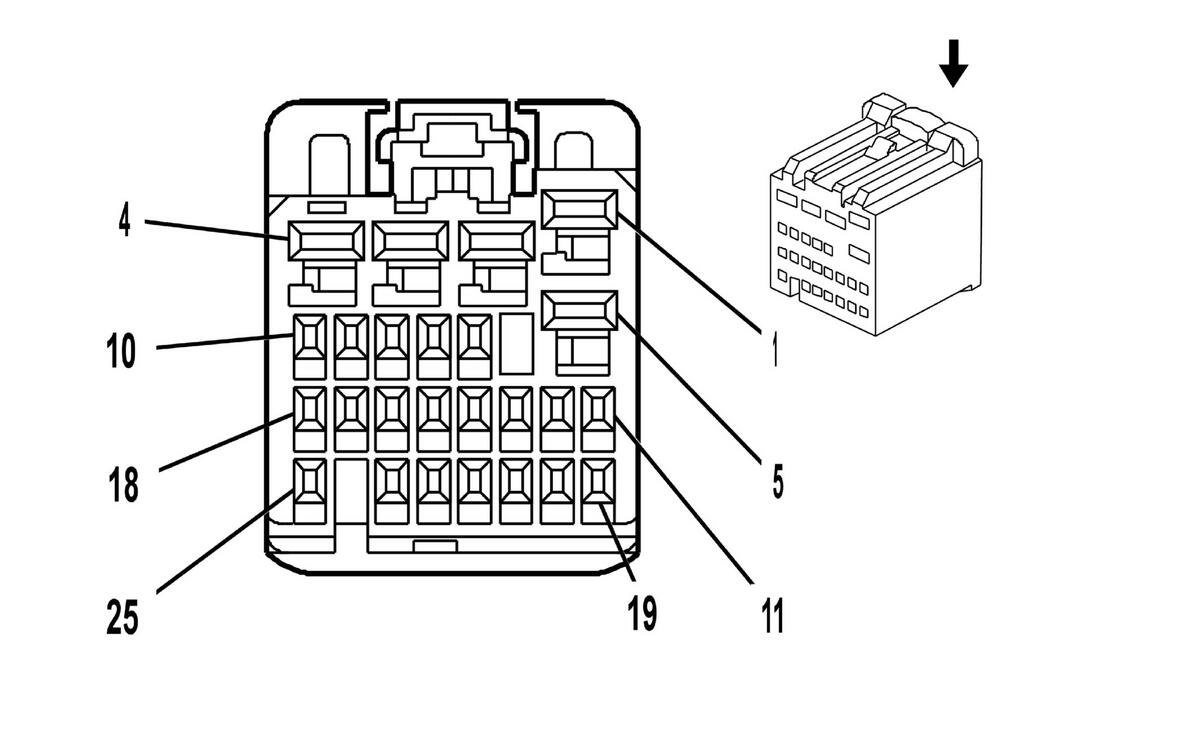

Fig 1: Body Control Module (BCM) C4 Connector End View

Courtesy of GENERAL MOTORS CORP.

Body Control Module (BCM) C4 Connector Parts Information

Connector Part Information

OEM: 15482792
Service: 88988841
Description: 25-Way F HIT Series (BK)

Terminal Part Information

Pins: 1-5
Terminal/Tray: SNAC-A061T-M2.8/20
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094429/J-35616-4A (PU)

Pins: 6-25
Terminal/Tray: SNAC3-A021T-M0.64/20
Core/Insulation Crimp: J/J
Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)

Body Control Module (BCM) C4 Connector Terminal Identification

Pin	Wire Color	Circuit No.	Function
1	RD/WH	2740	Battery Positive Voltage
2	RD/WH	3040	Battery Positive Voltage
3	RD/WH	2940	Battery Positive Voltage
4	RD/WH	2240	Battery Positive Voltage
5	D-BU/WH	1315	Right Front Turn Signal Lamp Supply Voltage
6	-	-	Not Used
7	YE	196	Windshield Wiper Motor Park Switch Signal
8	-	-	Not Used
9	BK/WH	451	Ground
10	RD/WH	2840	Battery Positive Voltage
11	D-GN/WH	1317	Fog Lamp Relay Control
12	YE	5187	Right Trailer Turn Signal Lamp
13	OG	5186	Left Trailer Turn Signal Lamp
14	L-GN	482	Outside Moisture Sensor Signal 2 (CE1)
15	OG	2268	Windshield Washer Relay Control
16	TN/WH	1969	Headlamp High Beam Relay Control
17	PK/BK	109	Hood Ajar Switch Signal
18	TN	481	Outside Moisture Sensor Signal 1 (CE1)
19	D-BU	5985	Accessory Wakeup Serial Data
20	-	-	Not Used
21	YE	5199	Run/Crank Relay Coil Control
22	-	-	Not Used
23	L-GN/BK	592	DRL Relay Control
24-25	-	-	Not Used
