Front Object Sensor - Right Middle (UD5)
Component Connector End Views

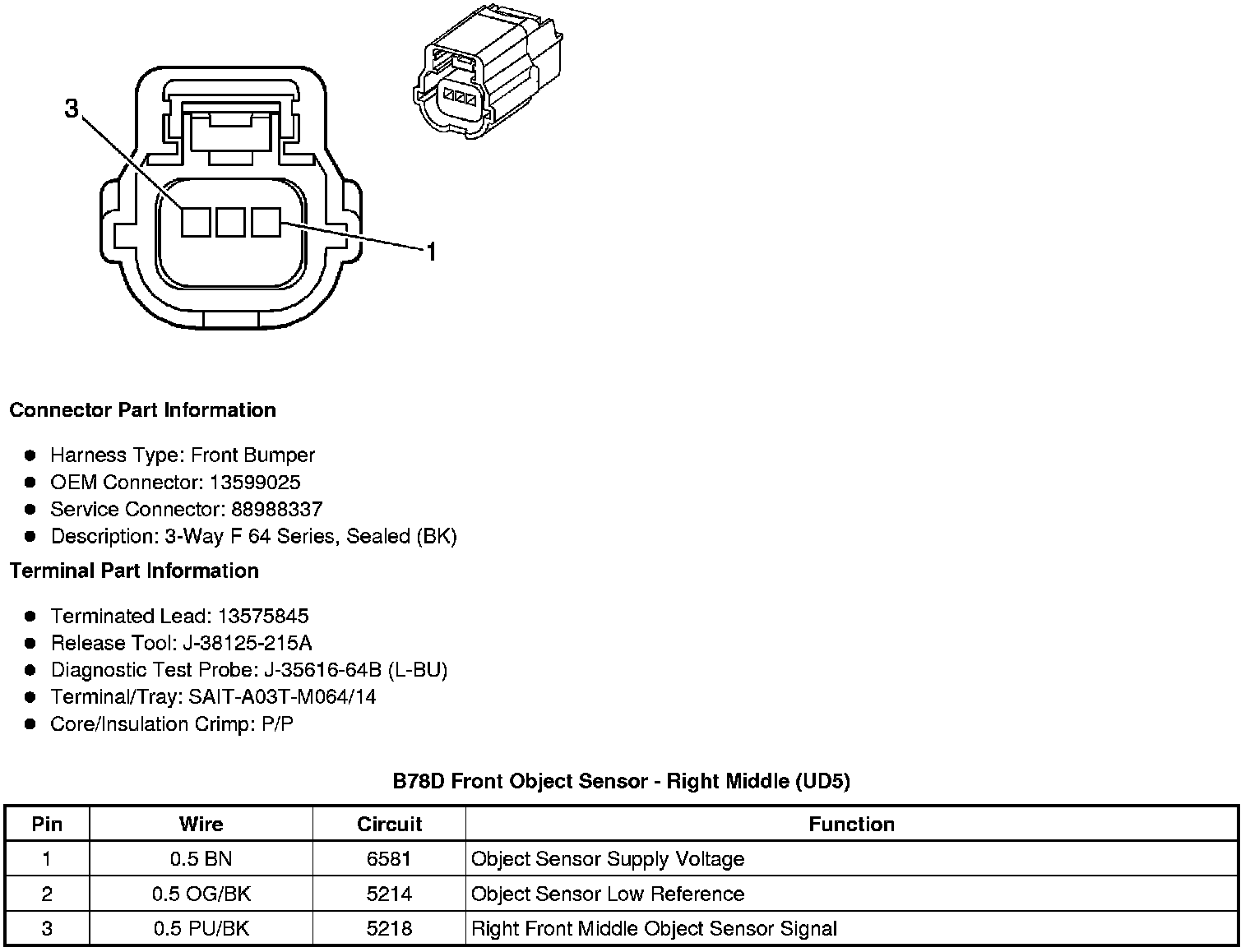

B78D Front Object Sensor - Right Middle (UD5)
