Keyless Entry Control Module X3




Component Connector End Views

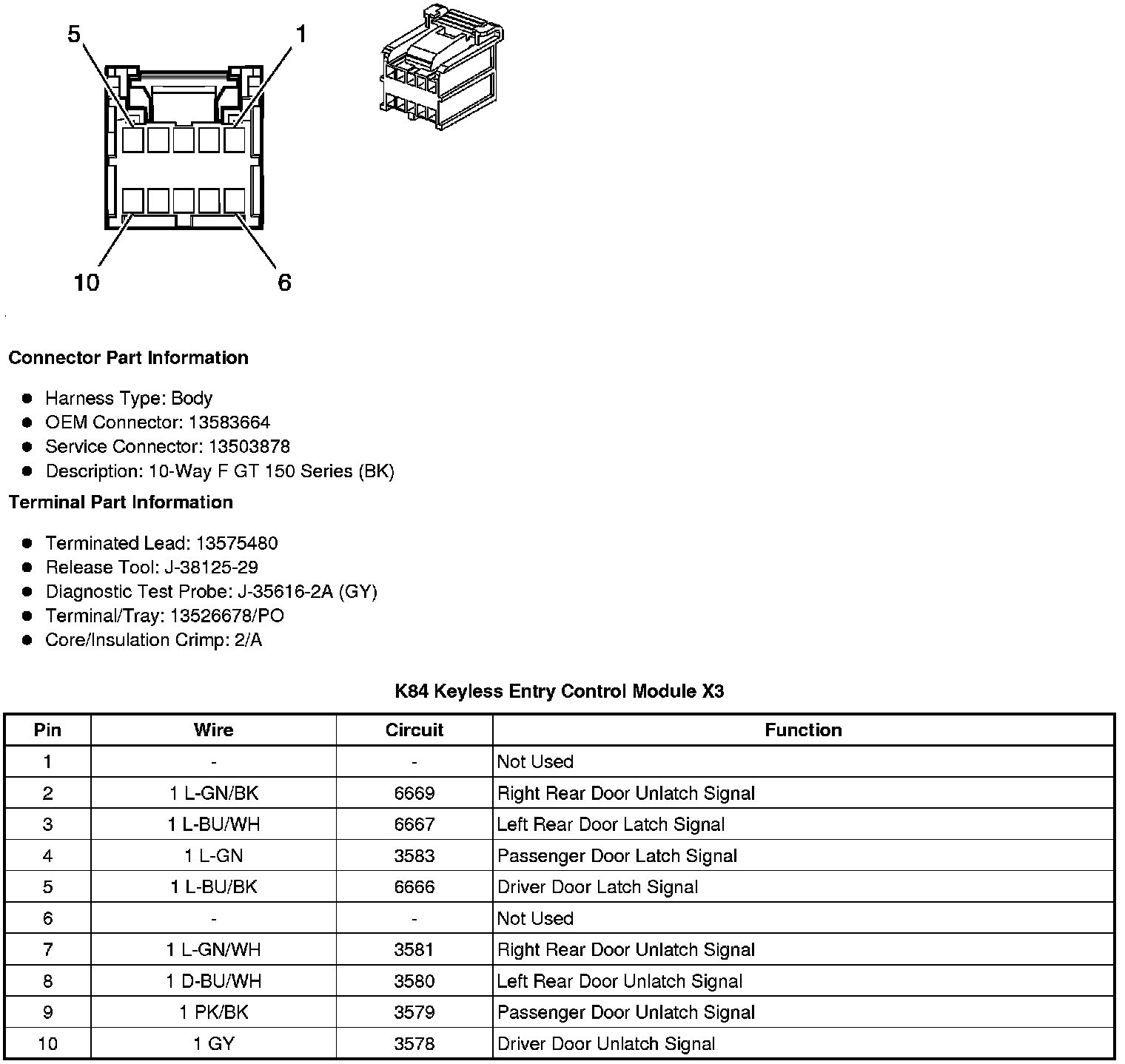

K84 Keyless Entry Control Module X3
