Parking Assist Control Module X2 (UD5)




Component Connector End Views

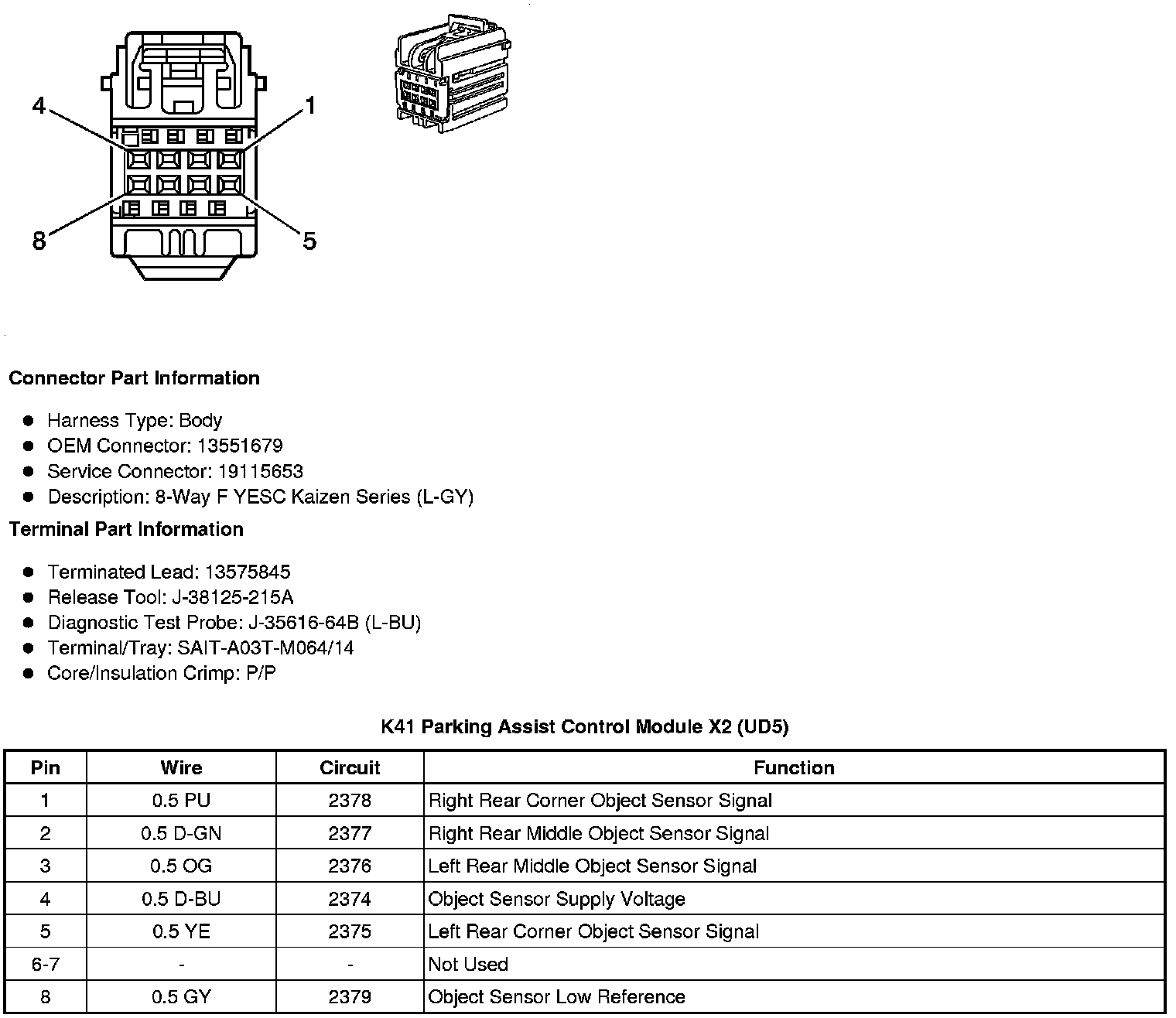

K41 Parking Assist Control Module X2 (UD5)
