Seat Memory Control Module X2 (AAB)

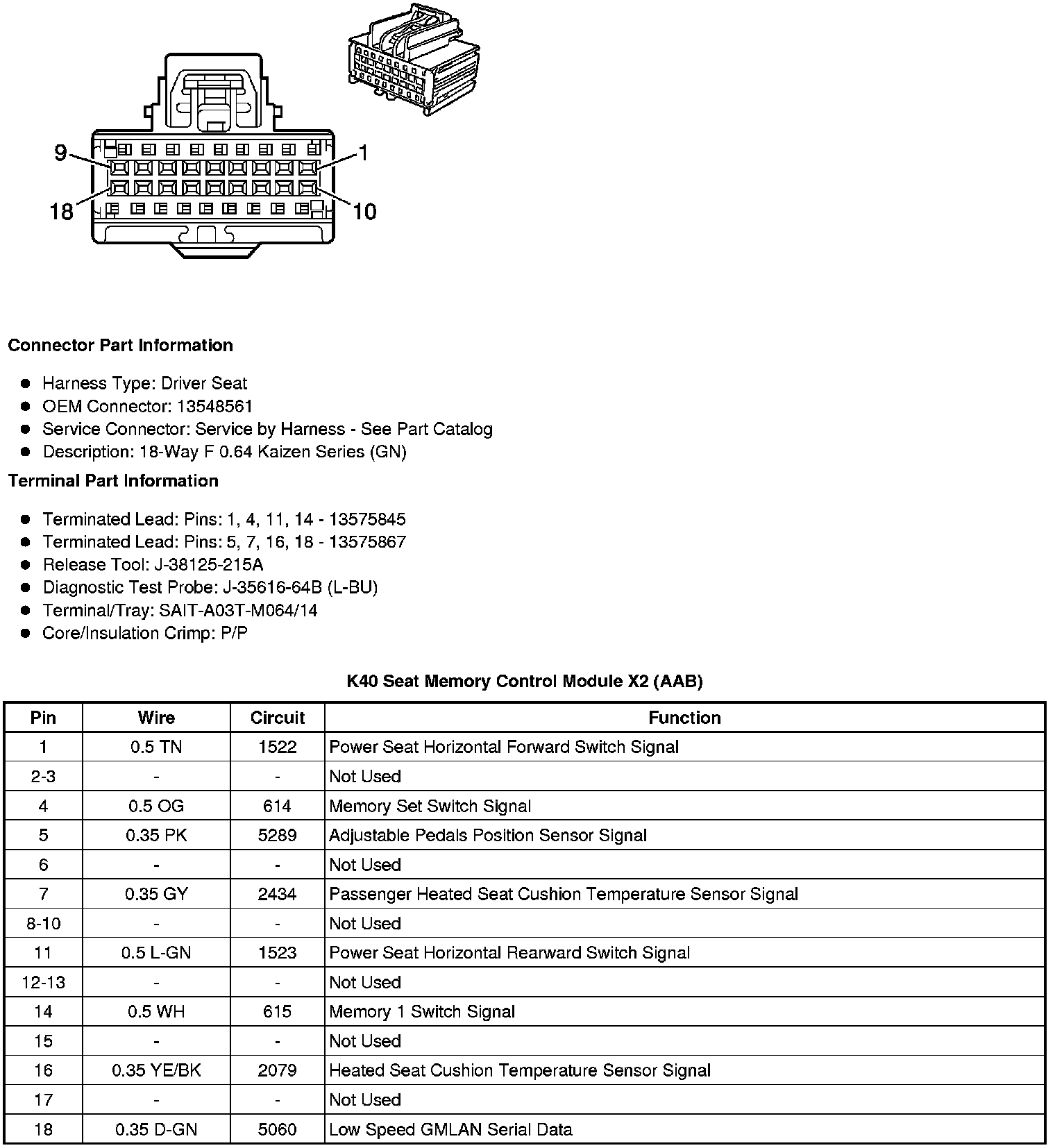

Component Connector End Views
K40 Seat Memory Control Module X2 (AAB)
