Seat Memory Control Module X5 (AAB)
Component Connector End Views

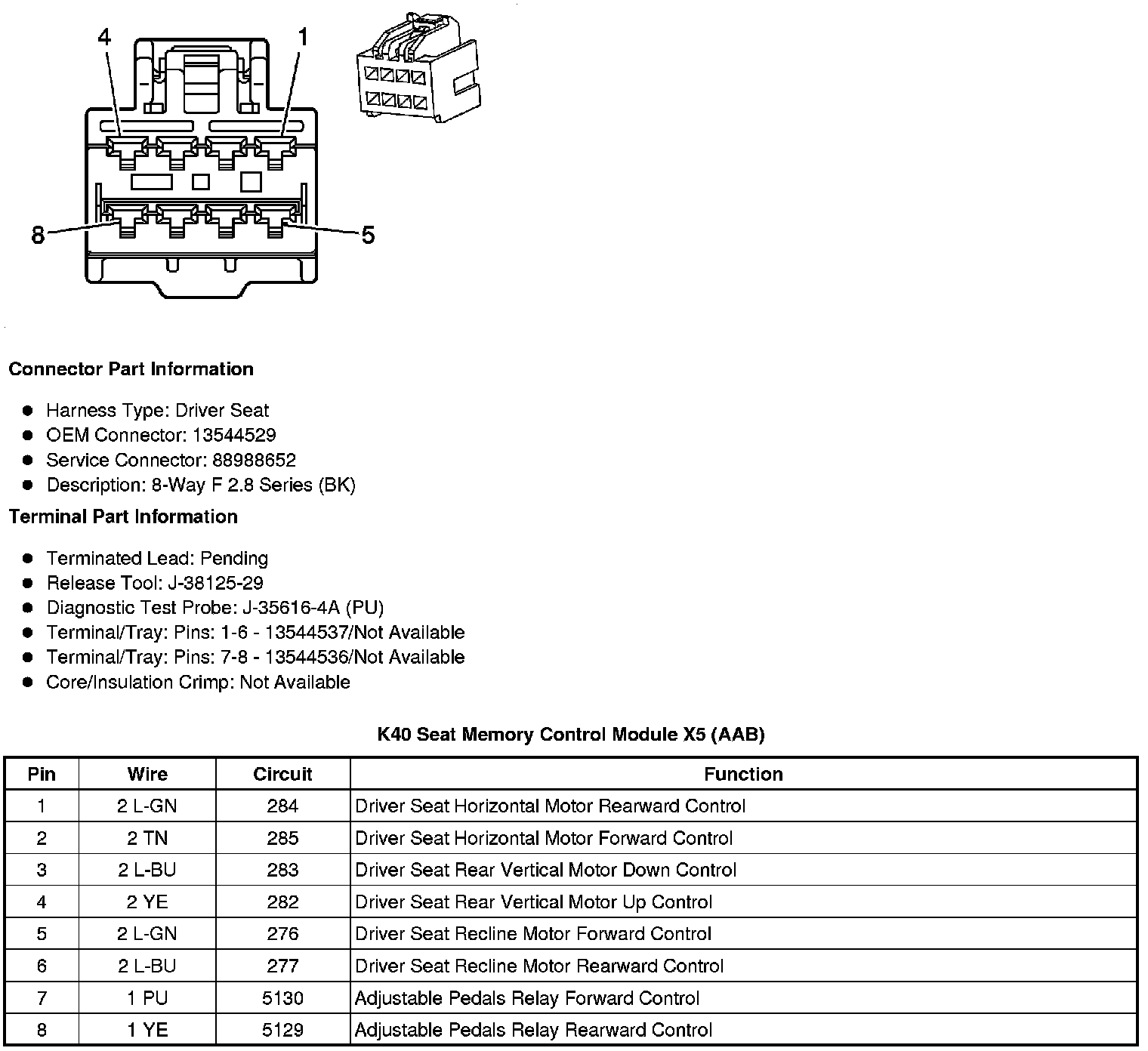

K40 Seat Memory Control Module X5 (AAB)
