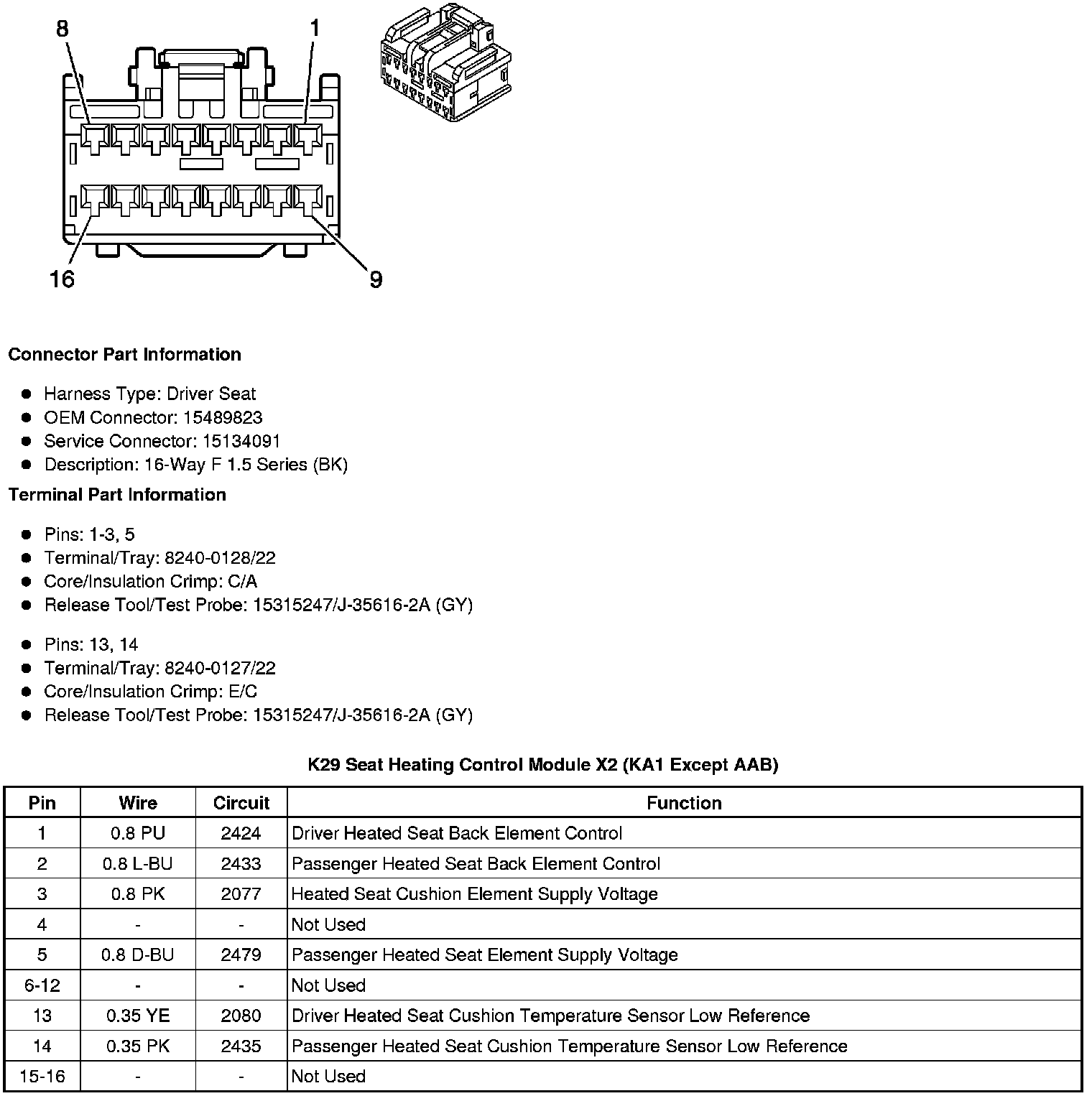

Seat Heating Control Module X2 (KA1 Except AAB)
Component Connector End Views
K29 Seat Heating Control Module X2 (KA1 Except AAB)
