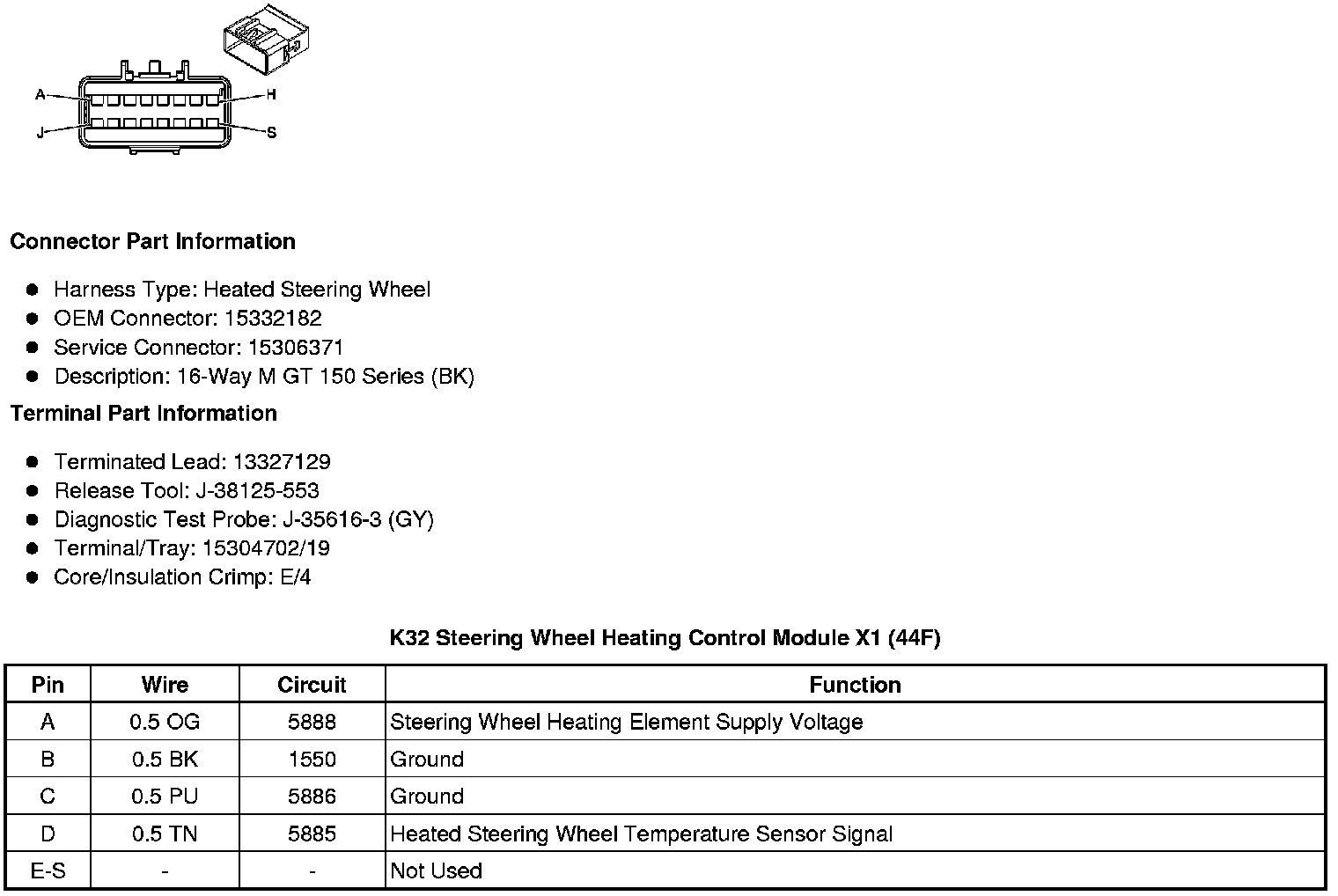

Steering Wheel Heating Control Module X1 (44F)




Component Connector End Views

K32 Steering Wheel Heating Control Module X1 (44F)
