Trailer Lighting Control Module X1 (U4G)

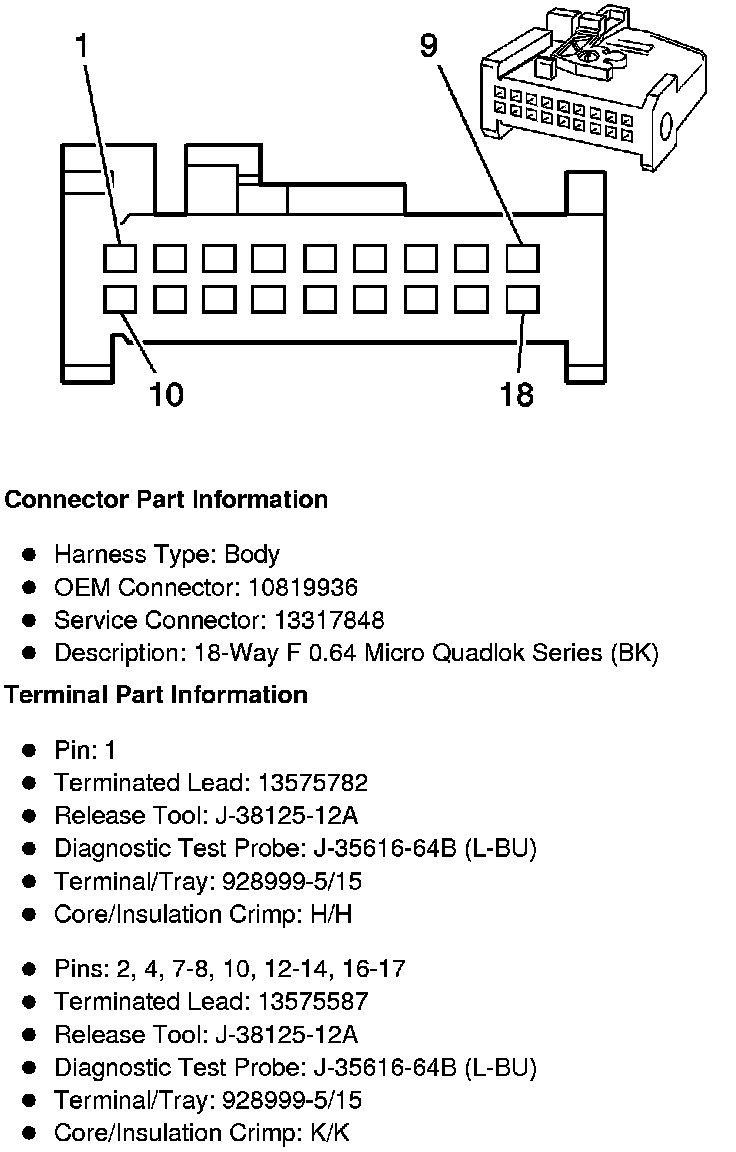

Component Connector End Views

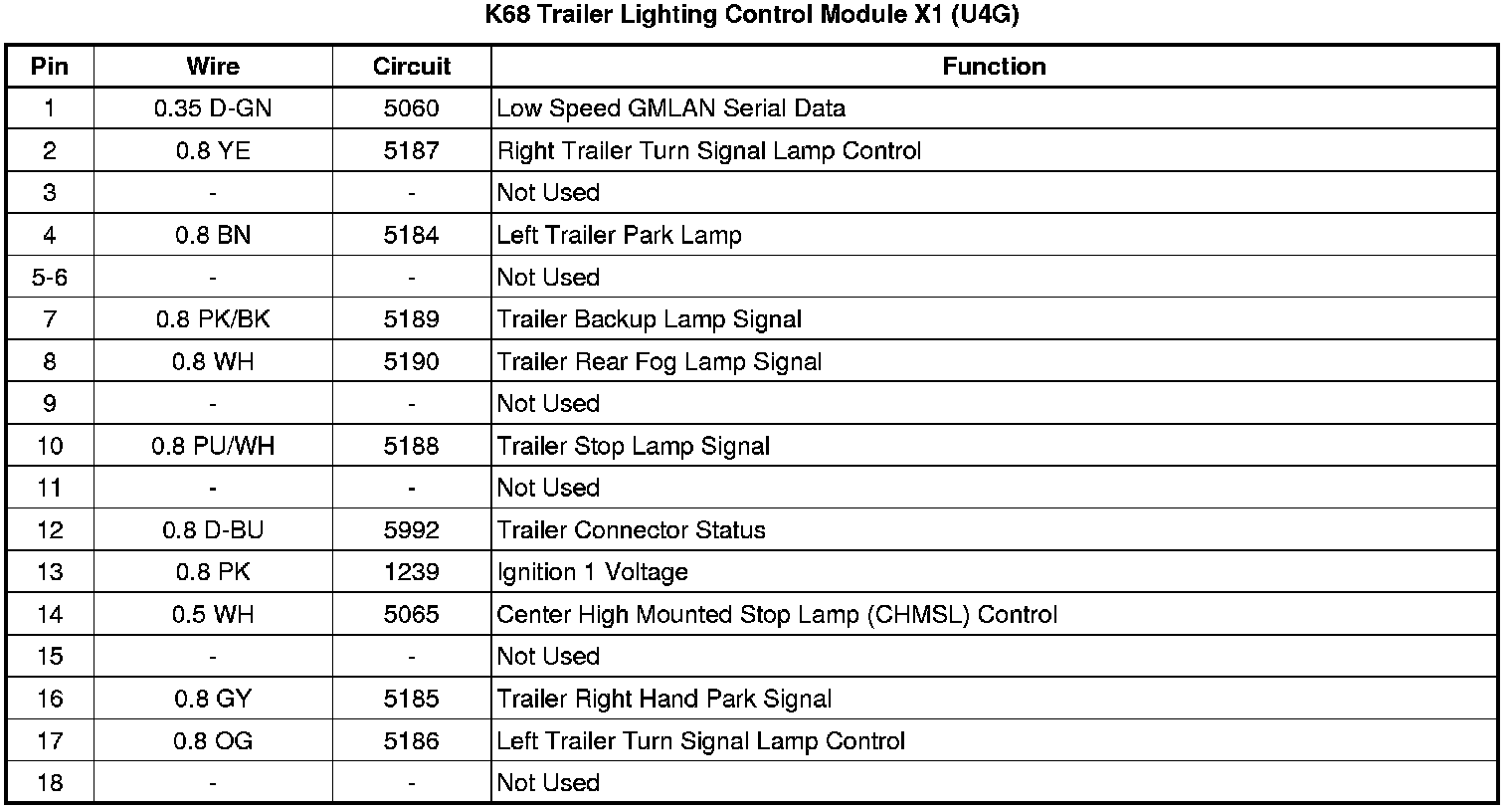

K68 Trailer Lighting Control Module X1 (U4G)
