Compressor Control Valve Assembly: Locations

Powertrain Component Views

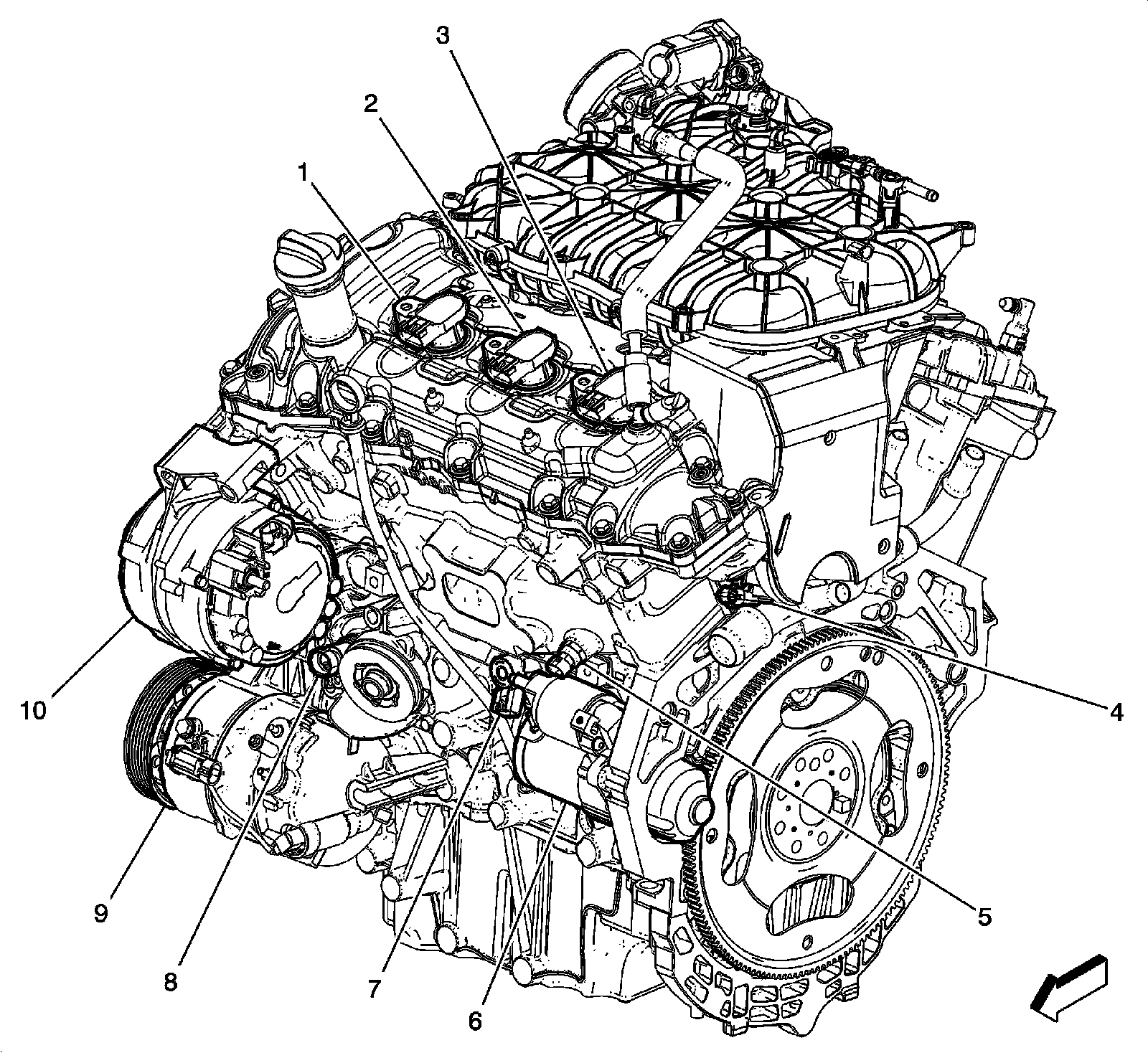

Front of the Engine Components (LF1)




1 - T8B Ignition Coil 2
2 - T8D Ignition Coil 4
3 - T8F Ignition Coil 6
4 - G18 High Pressure Fuel Pump
5 - B34 Engine Coolant Temperature Sensor
6 - M64 Starter Motor
7 - B68B Knock Sensor 2
8 - B37 Engine Oil Pressure Switch
9 - Q46 A/C Compressor Solenoid Valve
10 - G13 Generator
