Blower Motor Control Module - Auxiliary

Instrument Panel/Center Console Component Views

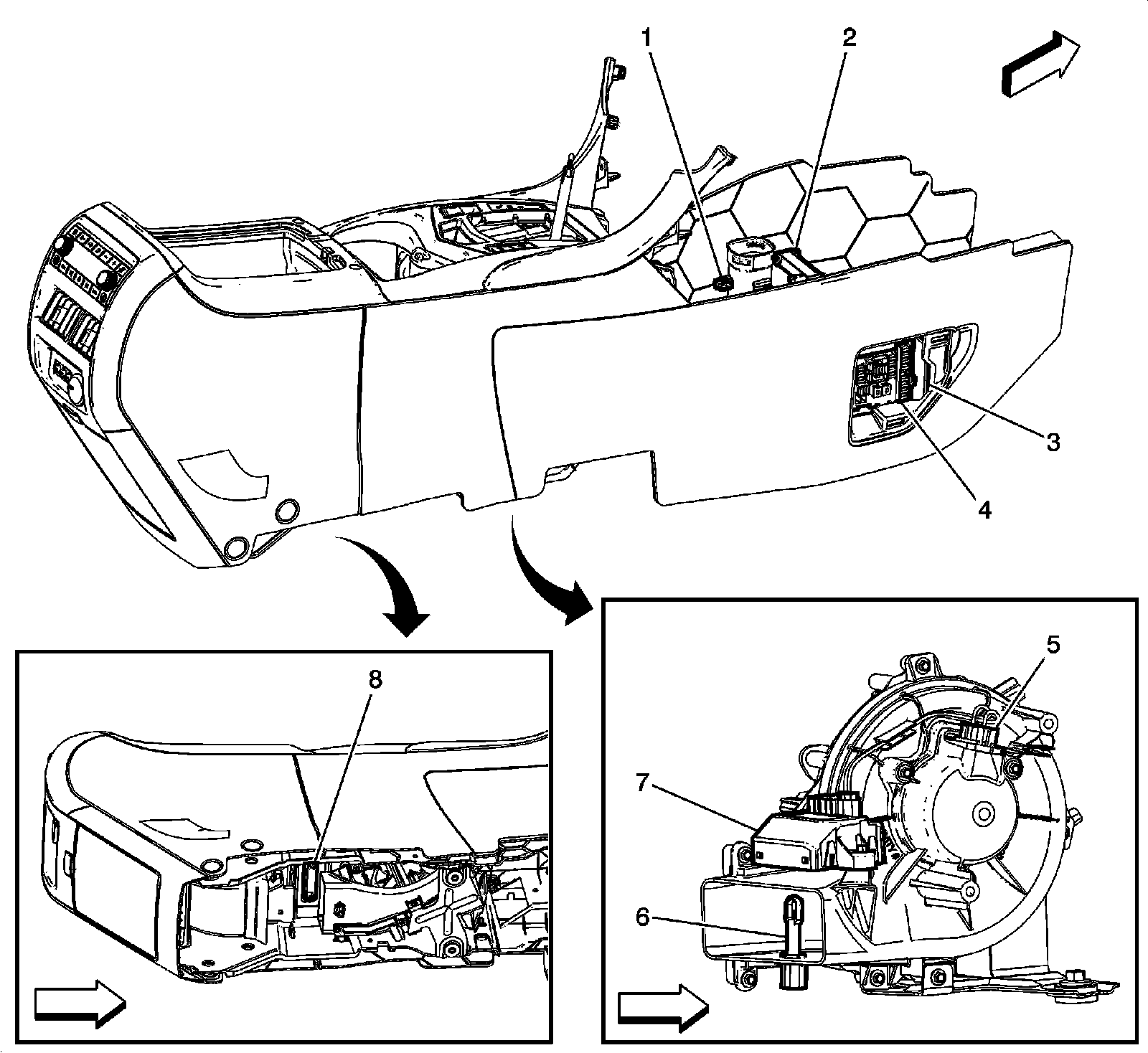

Floor Console Internal Components




1 - B7F Air Temperature Sensor - Duct Upper
2 - T10J Keyless Entry Antenna - Center Console Front
3 - T11 Multimedia Player Interface Module (UTE or UYK or UYI)
4 - X51A Fuse Block - Instrument Panel
5 - M8B Blower Motor - Auxiliary
6 - B7B Air Temperature Sensor - Duct Lower
7 - K8A Blower Motor Control Module - Auxiliary
8 - T10K Keyless Entry Antenna - Center Console Rear
