Battery Current Sensor: Locations

Front of Vehicle/Engine Compartment Component Views

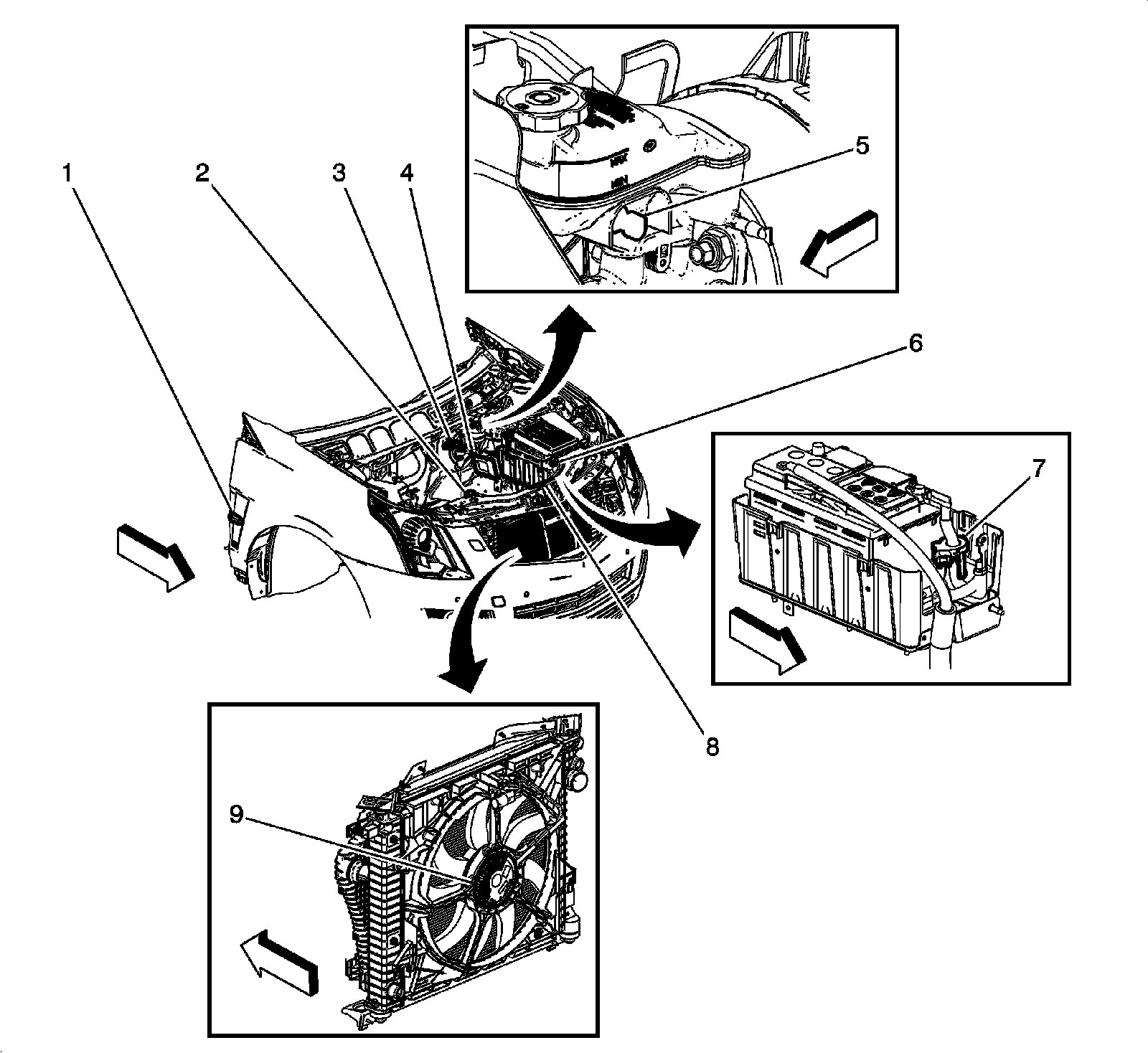

Right Front of the Engine Compartment Components




1 - E4Z Turn Signal Repeater Lamp - Right
2 - B59R Front Impact Sensor - Right
3 - B19B Brake Booster Vacuum Sensor
4 - K17 Electronic Brake Control Module
5 - B20 Brake Fluid Level Switch
6 - B59L Front Impact Sensor - Left
7 - B18 Battery Current Sensor
8 - C1 Battery
9 - K22 Cooling Fan Control Module (LAU)
