Data Link Connector: Locations

Instrument Panel/Center Console Component Views

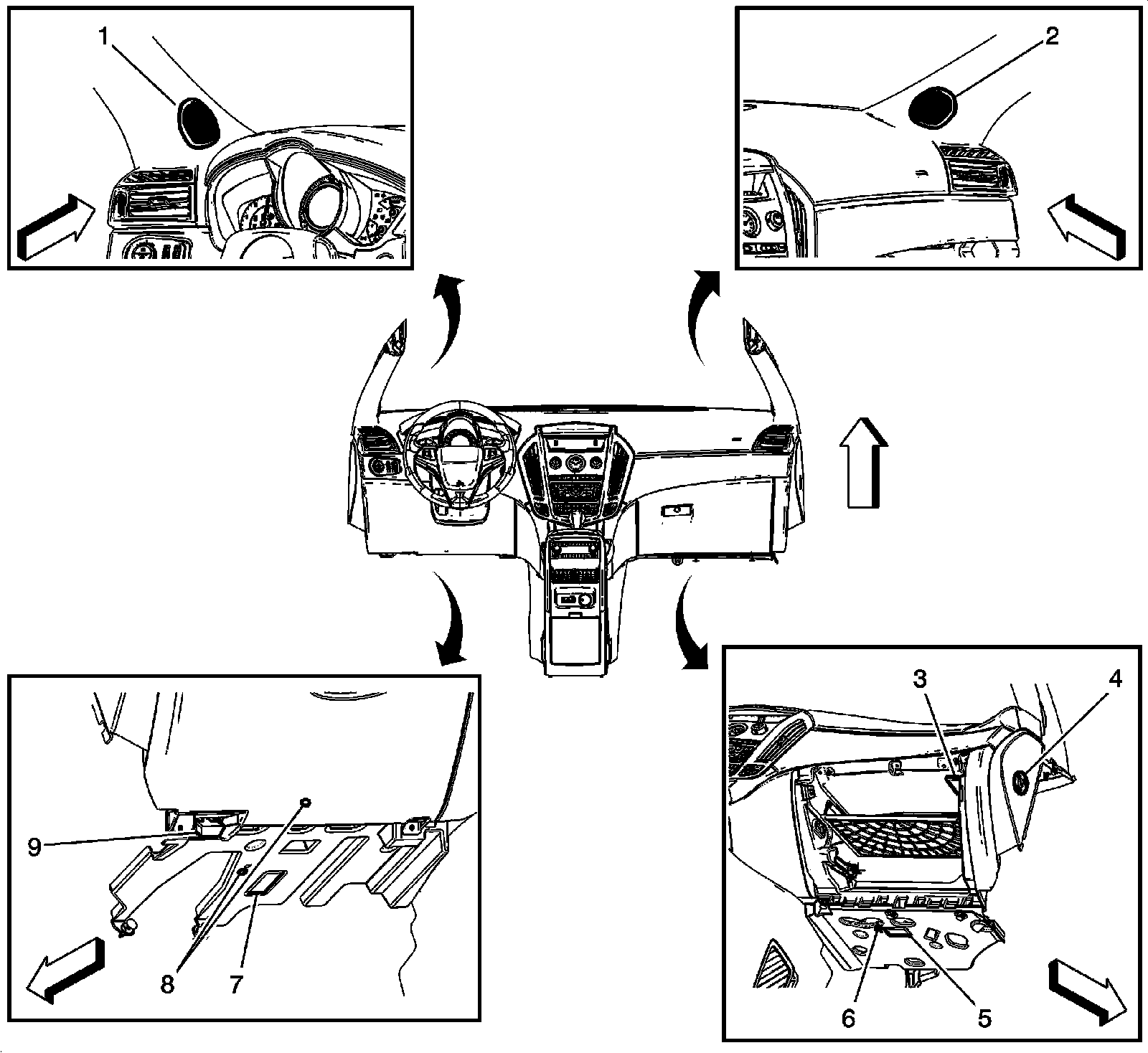

Instrument Panel Upper and Lower Components




1 - P19H Speaker - Left Front Tweeter
2 - P19V Speaker - Right Front Tweeter
3 - E27 Instrument Panel Compartment Lamp
4 - S40 Passenger Air Bag Disable Switch (C99)
5 - E8K Instrument Panel Courtesy Lamp - Right
6 - E1K Accent Lamp - Right Lower Instrument Panel (TSQ)
7 - E8J Instrument Panel Courtesy Lamp - Left
8 - E1J Accent Lamp - Left Lower Instrument Panel (TSQ)
9 - X84 Data Link Connector
