Fuel Level Sensor: Locations




Wheels/Vehicle Underbody Component Views

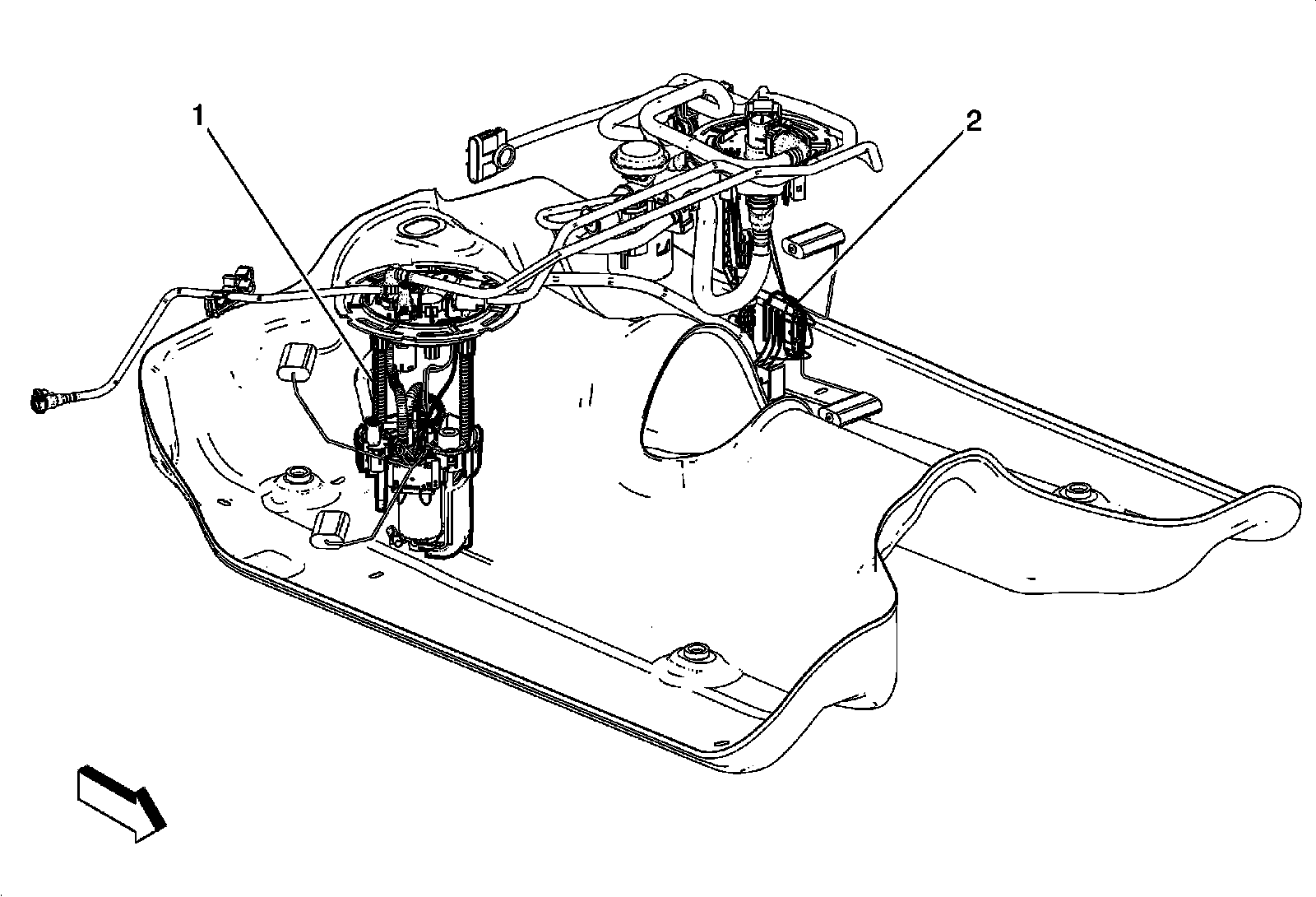

Fuel Tank Components




1 - A7 Fuel Pump and Level Sensor Assembly
2 - B46B Fuel Level Sensor - Secondary
