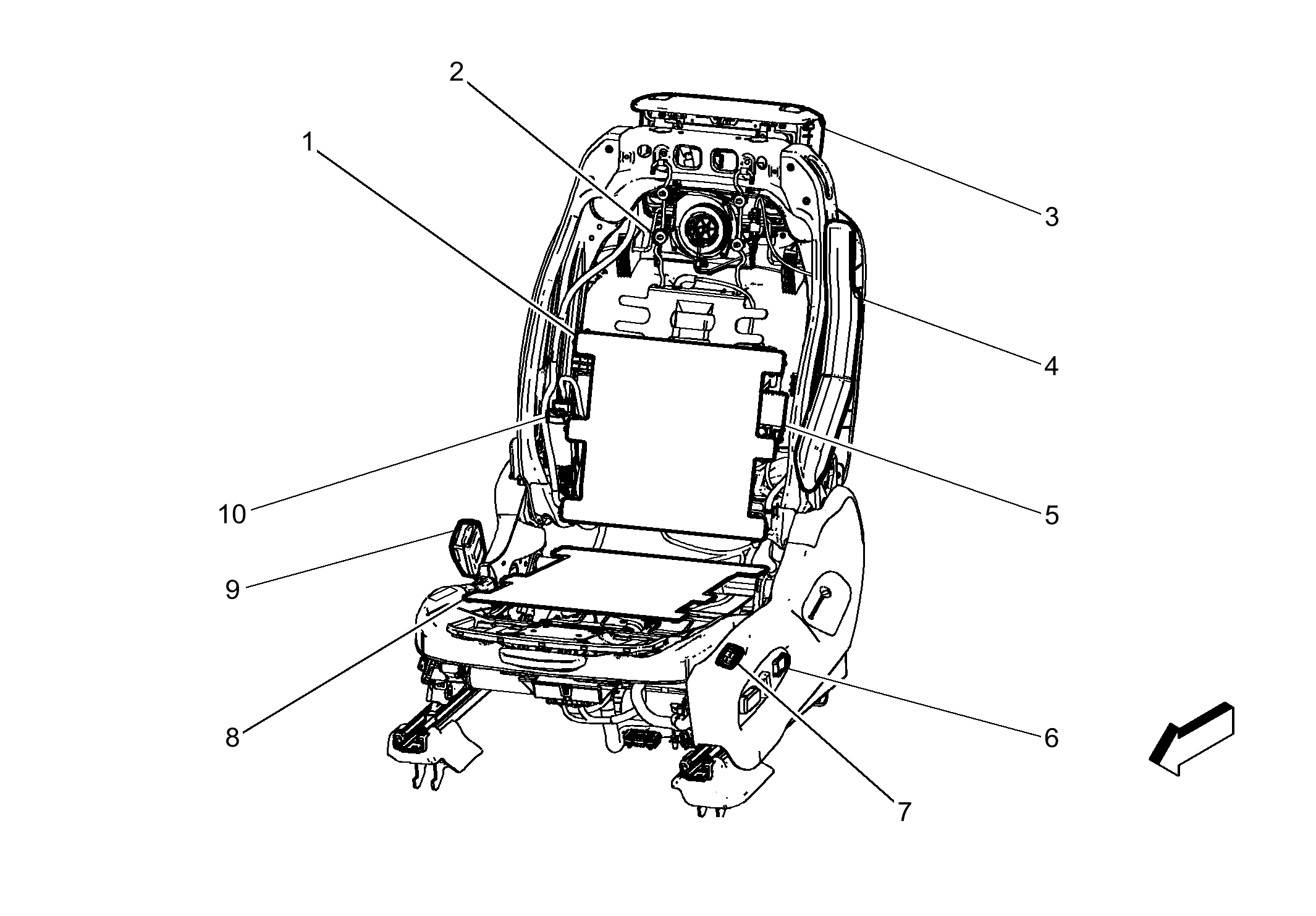

Left Front Seat Components
Left Front Seat Components
| Component Name | Callout |
|---|---|
| E14A Seat Heating Element - Driver Back (KA1) | 1 |
| M73A Seat Blower Motor - Driver Back (KU1) | 2 |
| P22D Video Display - Driver Seat Headrest | 3 |
| F106L Side Air Bag - Left | 4 |
| M53D Seat Lumbar Support Motor - Driver (AL2) | 5 |
| S65D Seat Lumbar Support Switch - Driver (AL2) | 6 |
| S64D Seat Adjuster Switch - Driver | 7 |
| E14B Seat Heating Element - Driver Cushion (KA1) | 8 |
| B88D Seat Belt Switch - Driver | 9 |
| M56D Seat Recline Motor - Driver | 10 |
