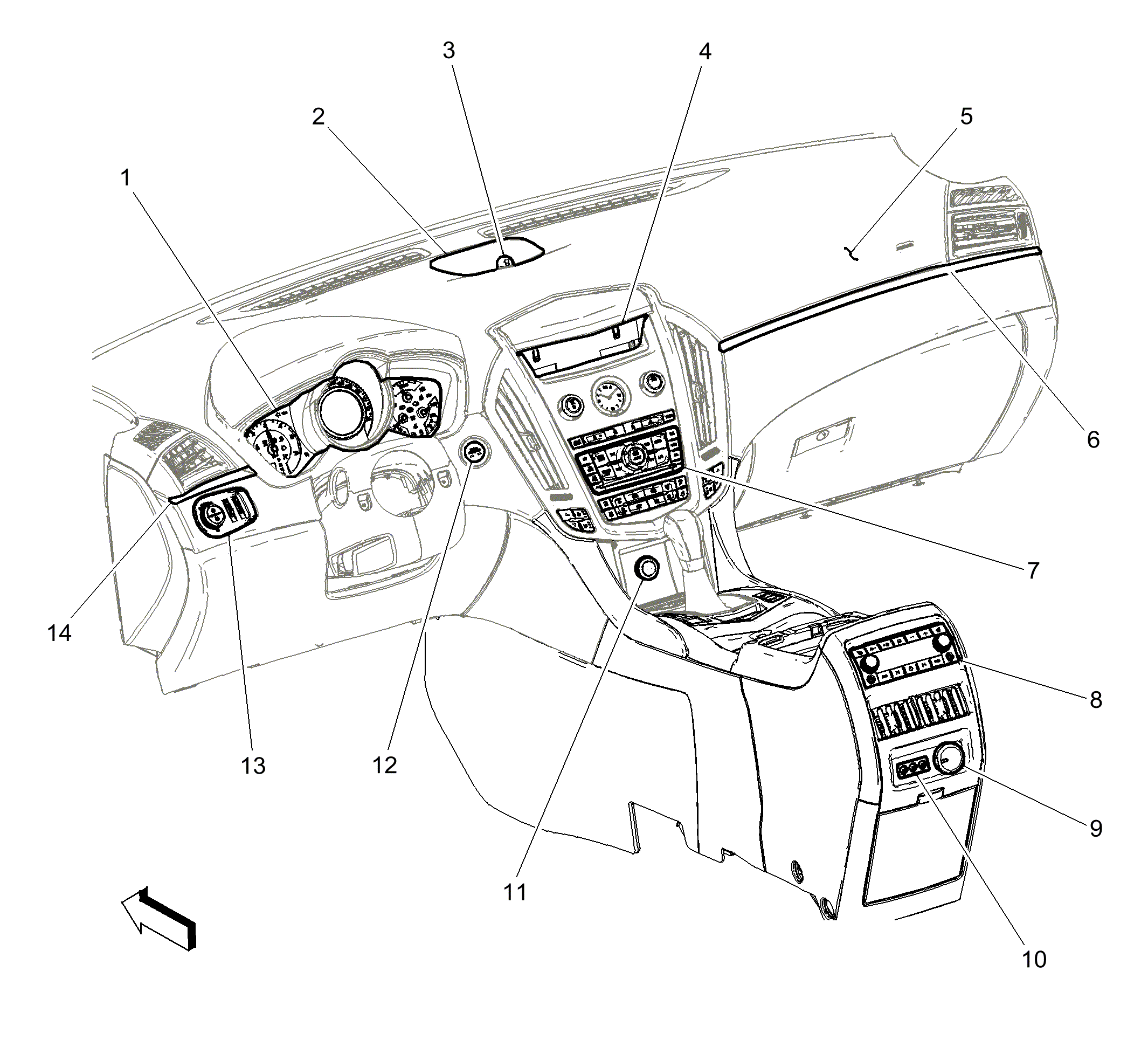

Instrument Panel and Console Components
Instrument Panel and Console Components
| Component Name | Callout |
|---|---|
| P16 Instrument Cluster | 1 |
| P19B Speaker - Center Instrument Panel | 2 |
| B10B Ambient Light/Sunload Sensor | 3 |
| P17 Info Display Module | 4 |
| F105 Passenger Instrument Panel Air Bag | 5 |
| E1H Accent Lamp - Right Instrument Panel (TSQ) | 6 |
| A20 Radio/HVAC Controls | 7 |
| A13 Rear Audio Control Module (ULD ) | 8 |
| X80H Accessory Power Receptacle - Center Console | 9 |
| X82 Audio/Video Input Adapter (UWG) | 10 |
| X80G Accessory Power Receptacle - Instrument Panel | 11 |
| S38 Ignition Mode Switch | 12 |
| S30 Headlamp Switch | 13 |
| E1G Accent Lamp - Left Instrument Panel (TSQ) | 14 |
