Engine Components - Left Front

Powertrain Component Views

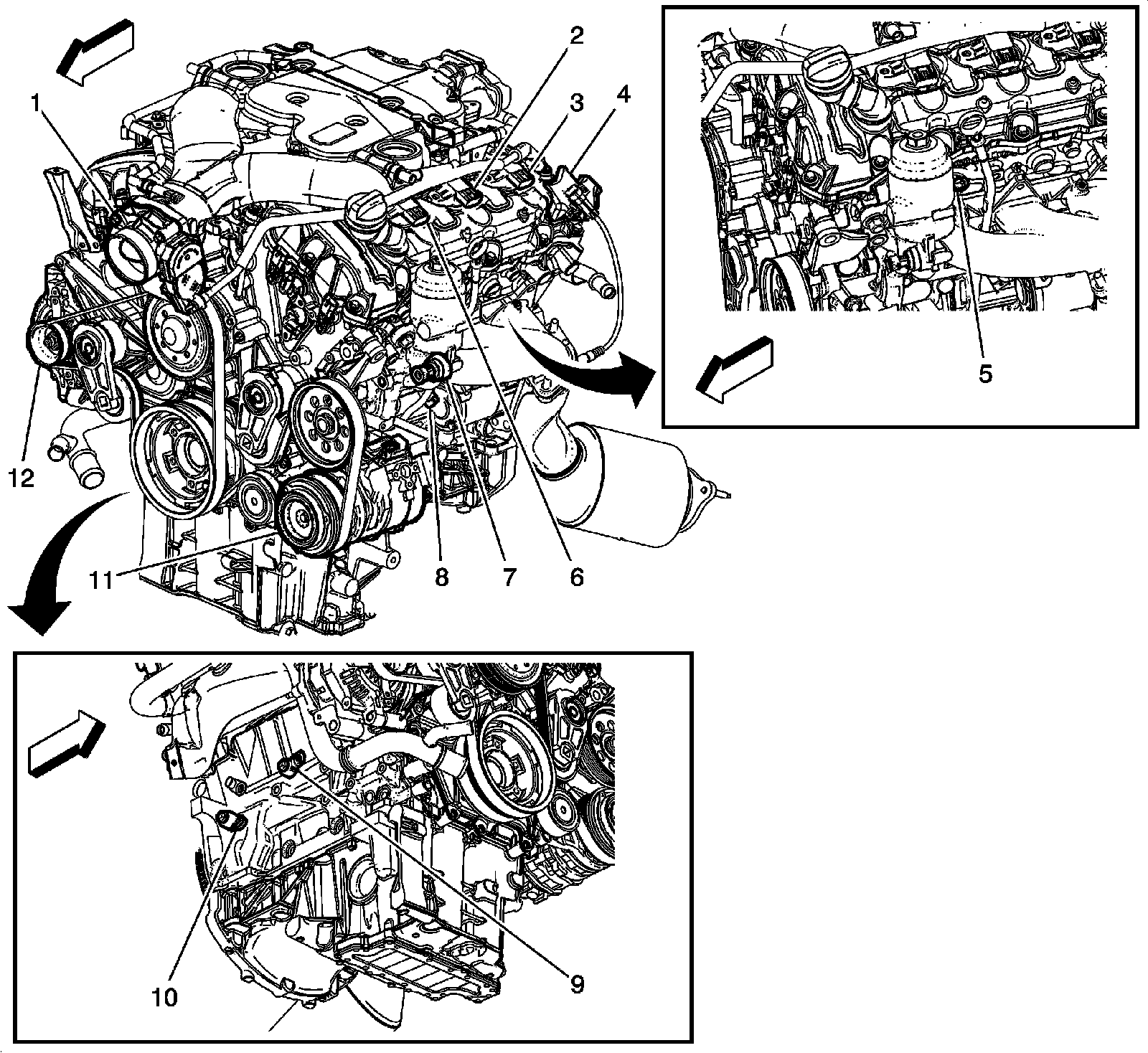

Engine Components - Left Front (LFW or LFX)





1 - Throttle Body

2 - Ignition Coil 4

3 - Ignition Coil 6

4 - High Pressure Fuel Pump

5 - Engine Coolant Temperature (ECT) Sensor

6 - Ignition Coil 2

7 - Engine Oil Pressure (EOP) Sensor

8 - Knock Sensor (KS) 2

9 - Knock Sensor (KS) 1

10 - Crankshaft Position (CKP) Sensor

11 - A/C Compressor Clutch

12 - Generator
