Trailer Brake Control Wiring Schematics: JL1

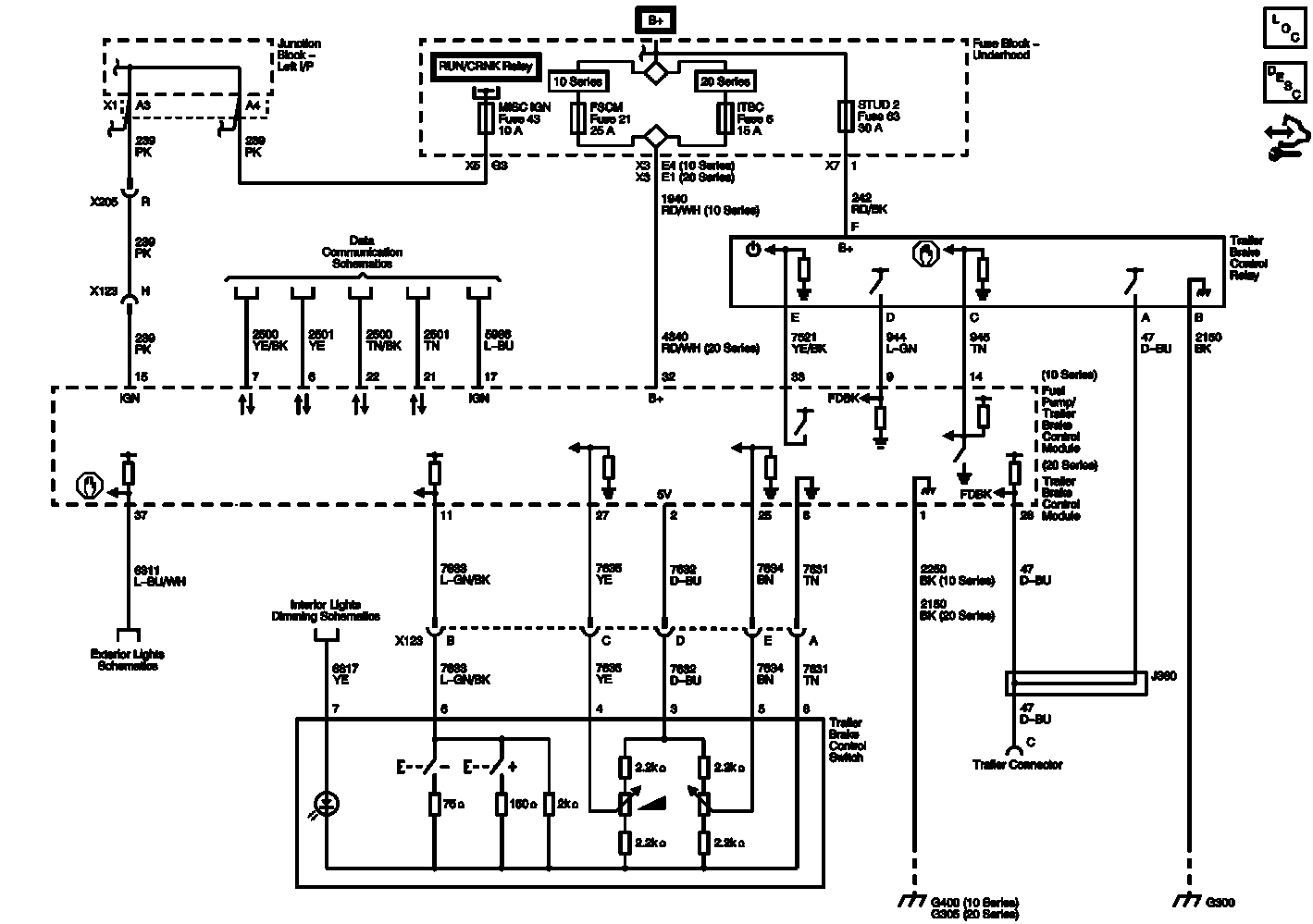

Fig 1: JL1 Wiring Schematic

GM2762071

Courtesy of GENERAL MOTORS COMPANY
