Rear Object Sensor Control Module X2 (UD7)
Component Connector End Views

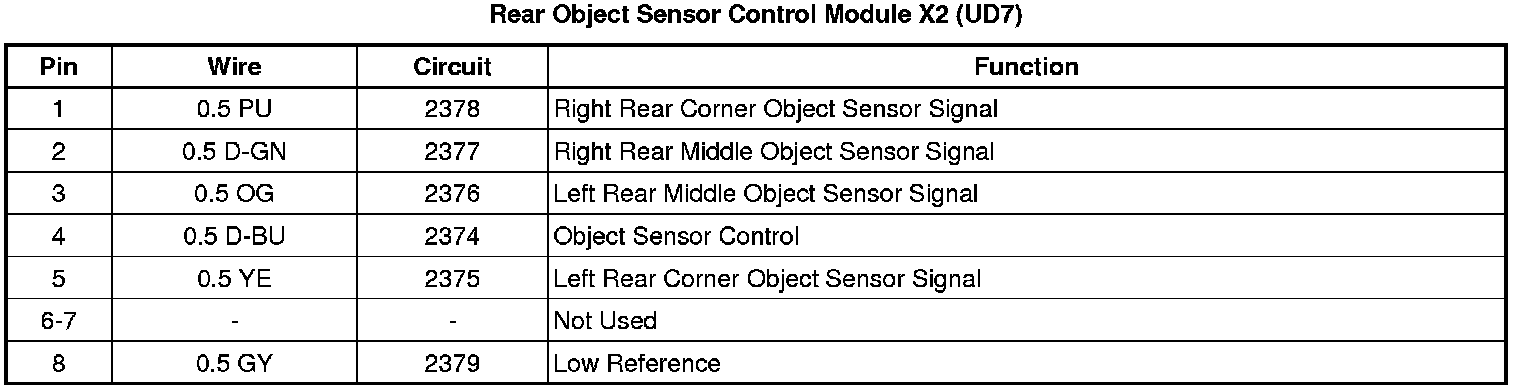

Rear Object Sensor Control Module X2 (UD7)
