Air Cleaner Assembly Replacement

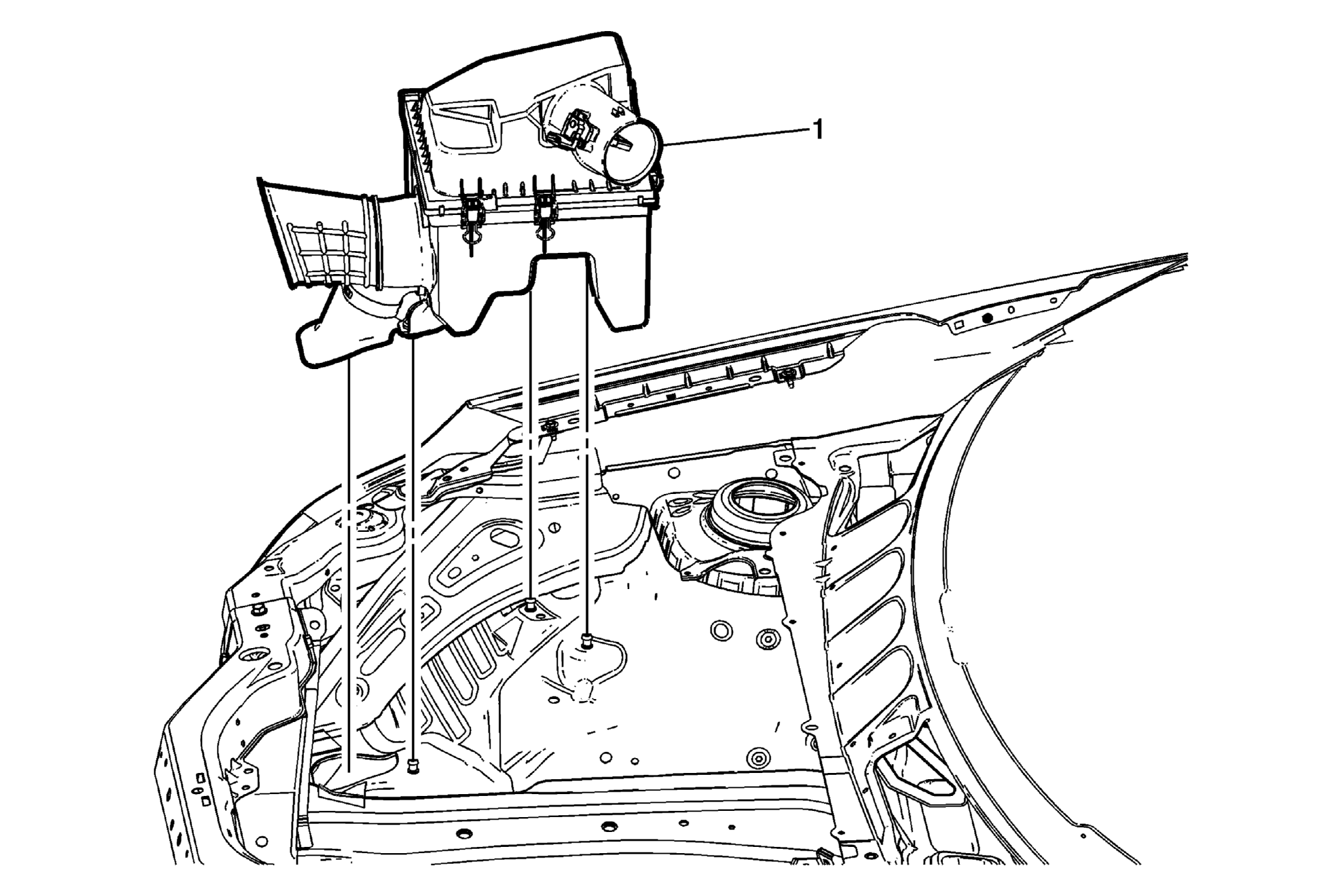

Fig 1: Air Cleaner Housing Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the air cleaner outlet duct from the air cleaner assembly. Refer to Air Cleaner Outlet Duct Replacement . Remove the air cleaner assembly upper cover. Refer to Air Cleaner Element Replacement .
1	Air Cleaner Assembly Procedure NOTE: Bend secondary inlet snorkel over and hold against front of air cleaner housing for installation. Disengage the air cleaner housing grommets from the studs, while guiding the housing out of the inlet duct. If replacing the air cleaner assembly, transfer parts as necessary. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure

Disconnect the air cleaner outlet duct from the air cleaner assembly. Refer to Air Cleaner Outlet Duct Replacement .
Remove the air cleaner assembly upper cover. Refer to Air Cleaner Element Replacement .

Air Cleaner Assembly

Procedure

NOTE:

Bend secondary inlet snorkel over and hold against front of air cleaner housing for installation.

Disengage the air cleaner housing grommets from the studs, while guiding the housing out of the inlet duct.
If replacing the air cleaner assembly, transfer parts as necessary.
Disconnect the electrical connector.
