Human Machine Interface Control Module X2

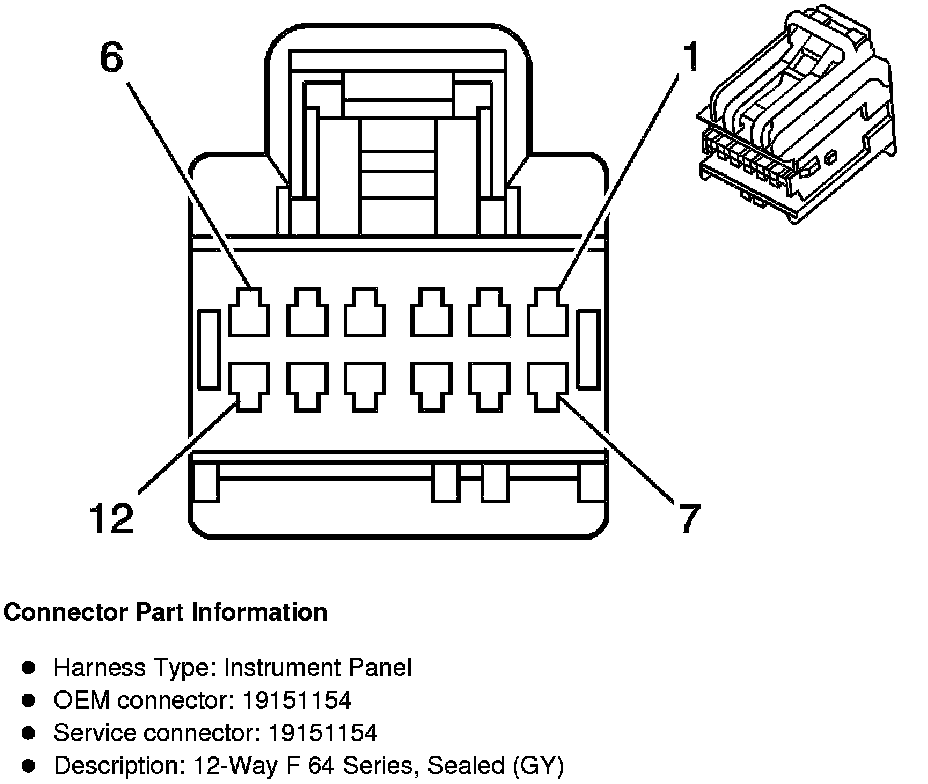

Component Connector End Views

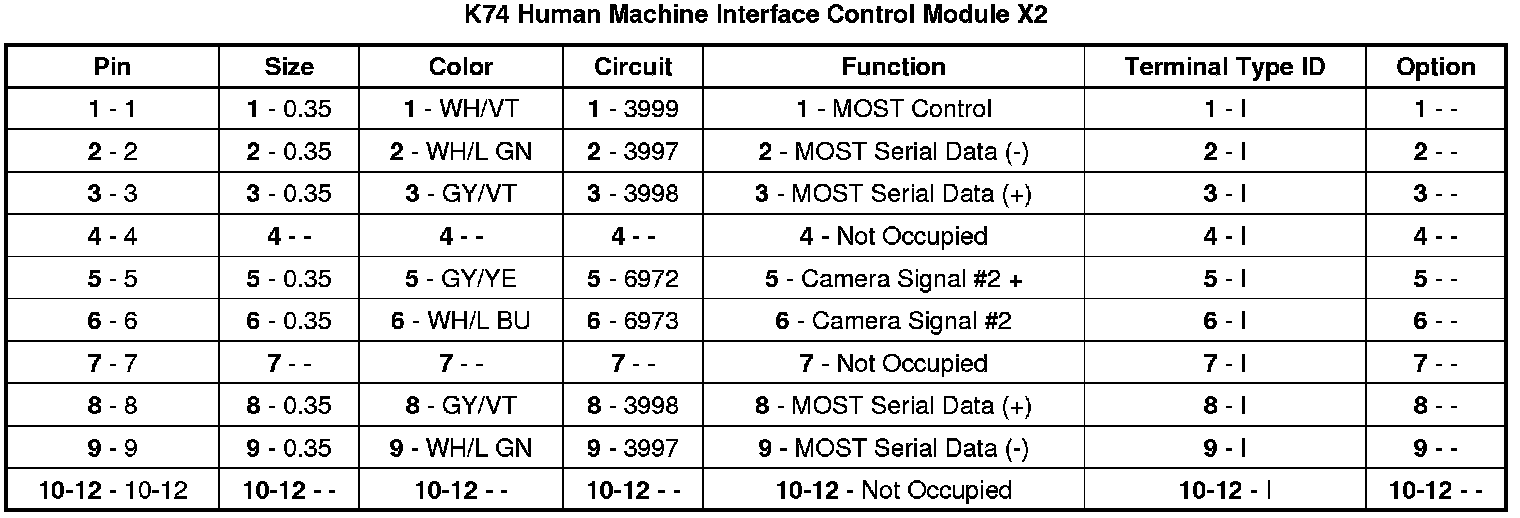

K74 Human Machine Interface Control Module X2
