Steering Column Position Control Module X1

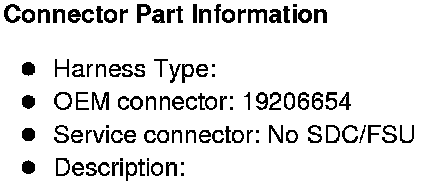

Component Connector End Views

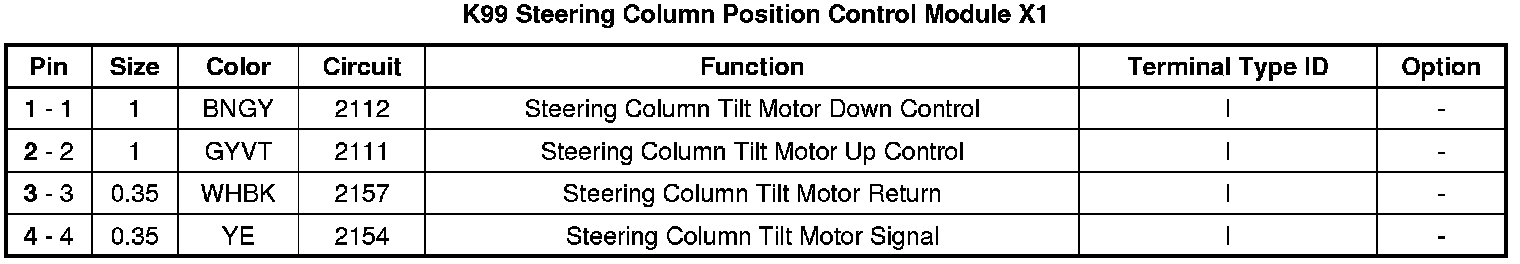

K99 Steering Column Position Control Module X1
