Body Control Module: Locations

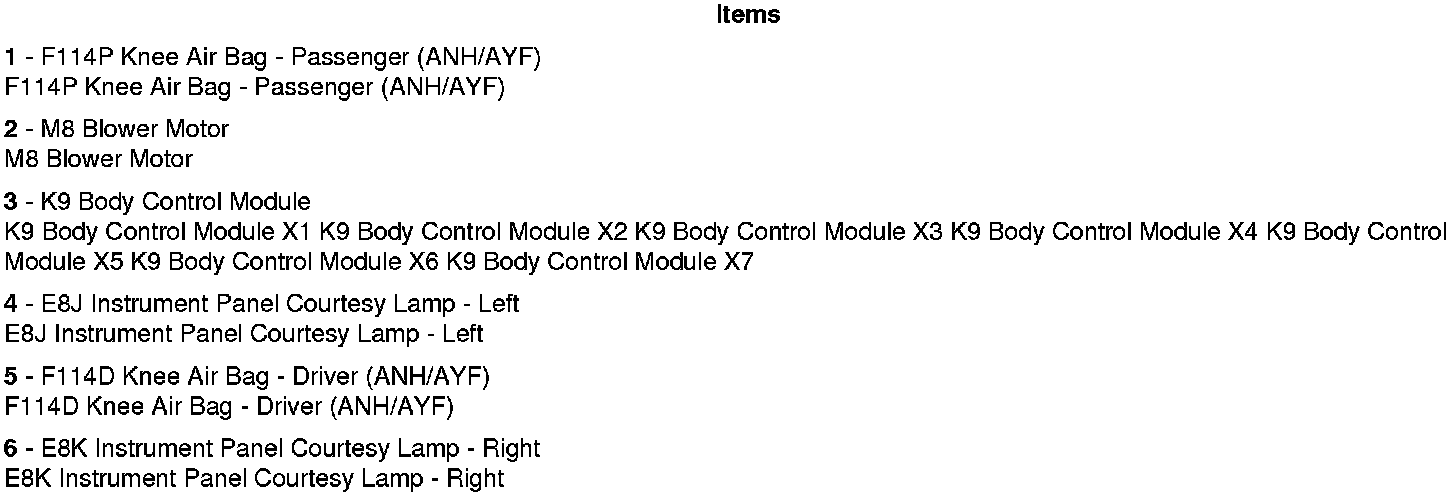

Instrument Panel/Center Console Component Views

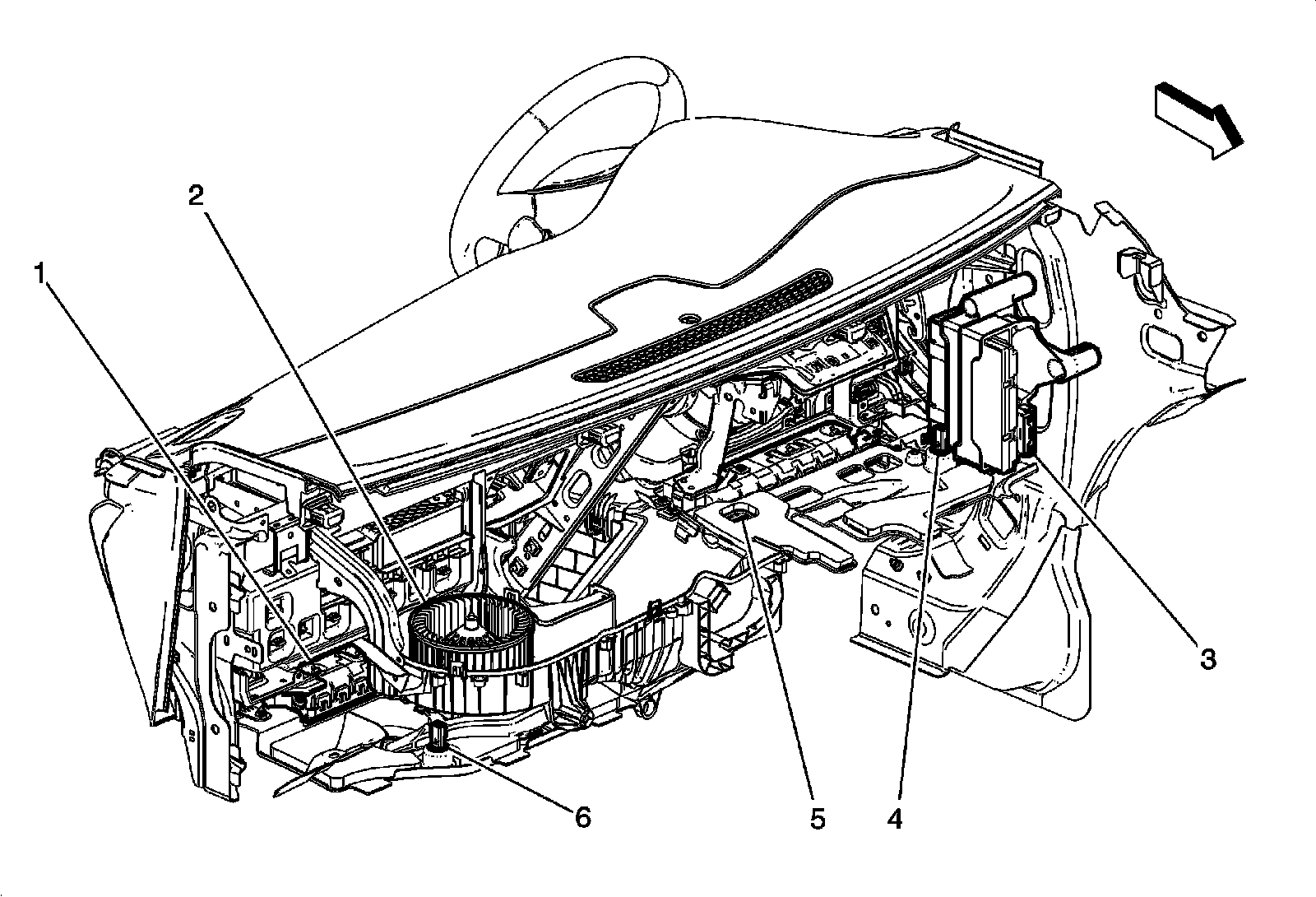

Instrument Panel Components - Behind (1 of 4)
