Human Machine Interface and Display Power, Ground, Serial Data and Microphone

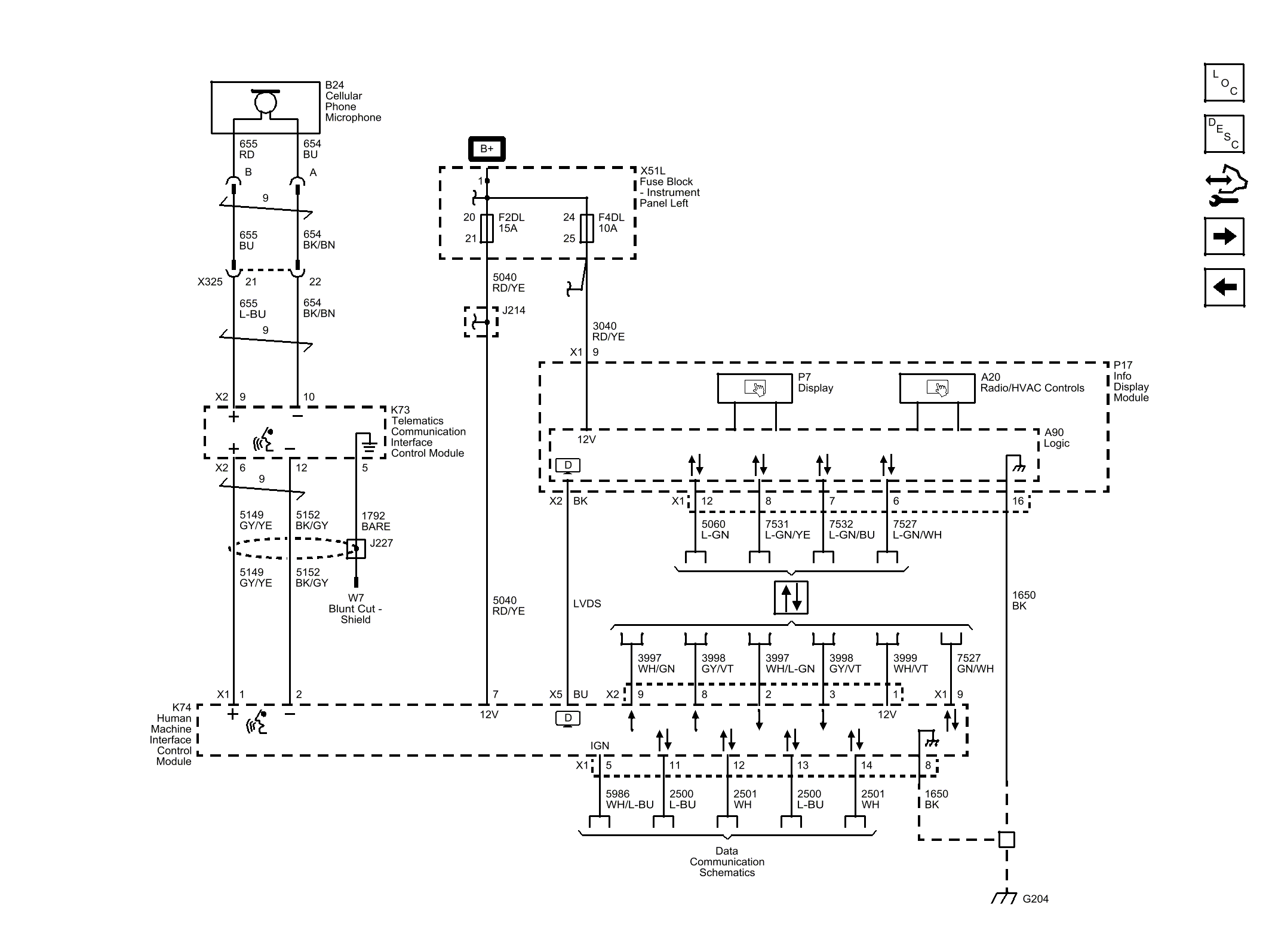

Fig 1: Human Machine Interface and Display Power, Ground, Serial Data and Microphone
GM3598120Courtesy of GENERAL MOTORS COMPANY
