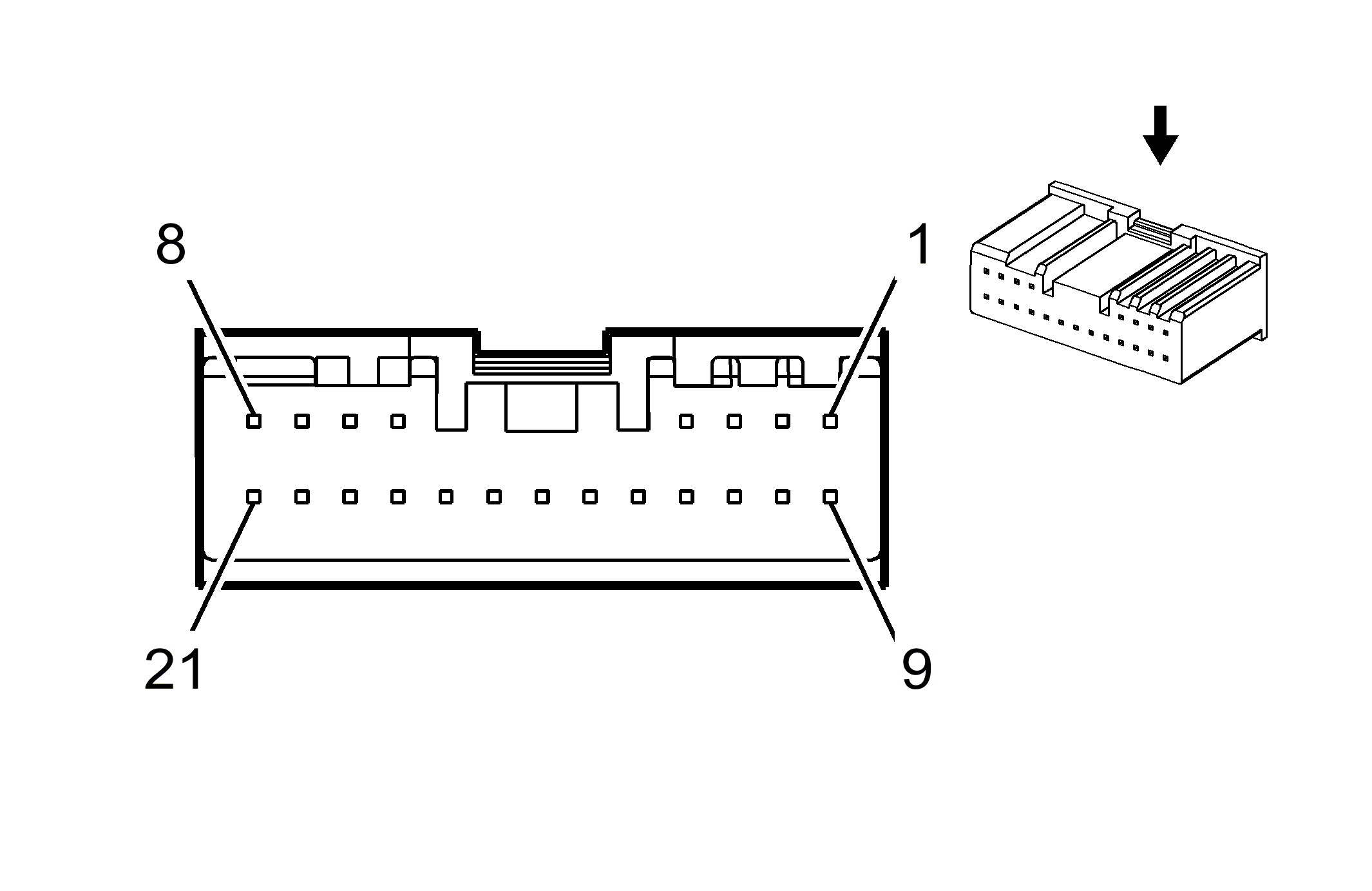

K112B Hybrid Battery Interface Control Module 2 X1
|
|
Connector Part Information
- Harness Type:
- OEM Connector: 13504012
- Service Connector: No SDC/FSU
- Description: 21-Way F (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Pending |
Pending |
Pending |
Not Available |
Not Available |
Not Available |
Not Available |
K112B Hybrid Battery Interface Control Module 2 X1
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1-5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.5 |
BK/WH |
251 |
Signal Ground |
I |
- |
| 7-8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
0.5 |
GY/RD |
705 |
5 Volt Reference |
I |
- |
| 10 |
0.5 |
BU/GY |
6434 |
CAN Bus High #2 Serial Data |
I |
- |
| 11 |
0.5 |
WH |
6435 |
CAN Bus Low #2 Serial Data |
I |
- |
| 12 |
0.5 |
BK/VT |
470 |
Sensor Low Reference |
I |
- |
| 13 |
0.5 |
BU/GY |
5139 |
High Voltage Fault Signal |
I |
- |
| 14 |
0.5 |
BU |
5139 |
High Voltage Fault Signal |
I |
- |
| 15 |
0.5 |
BK/VT |
470 |
Sensor Low Reference |
I |
- |
| 16 |
0.5 |
WH |
6435 |
CAN Bus Low #2 Serial Data |
I |
- |
| 17 |
0.5 |
BU/GY |
6434 |
CAN Bus High #2 Serial Data |
I |
- |
| 18 |
0.5 |
GY/RD |
705 |
5 Volt Reference |
I |
- |
| 19 |
0.5 |
BK/WH |
251 |
Signal Ground |
I |
- |
| 20-21 |
- |
- |
- |
Not Occupied |
- |
- |
