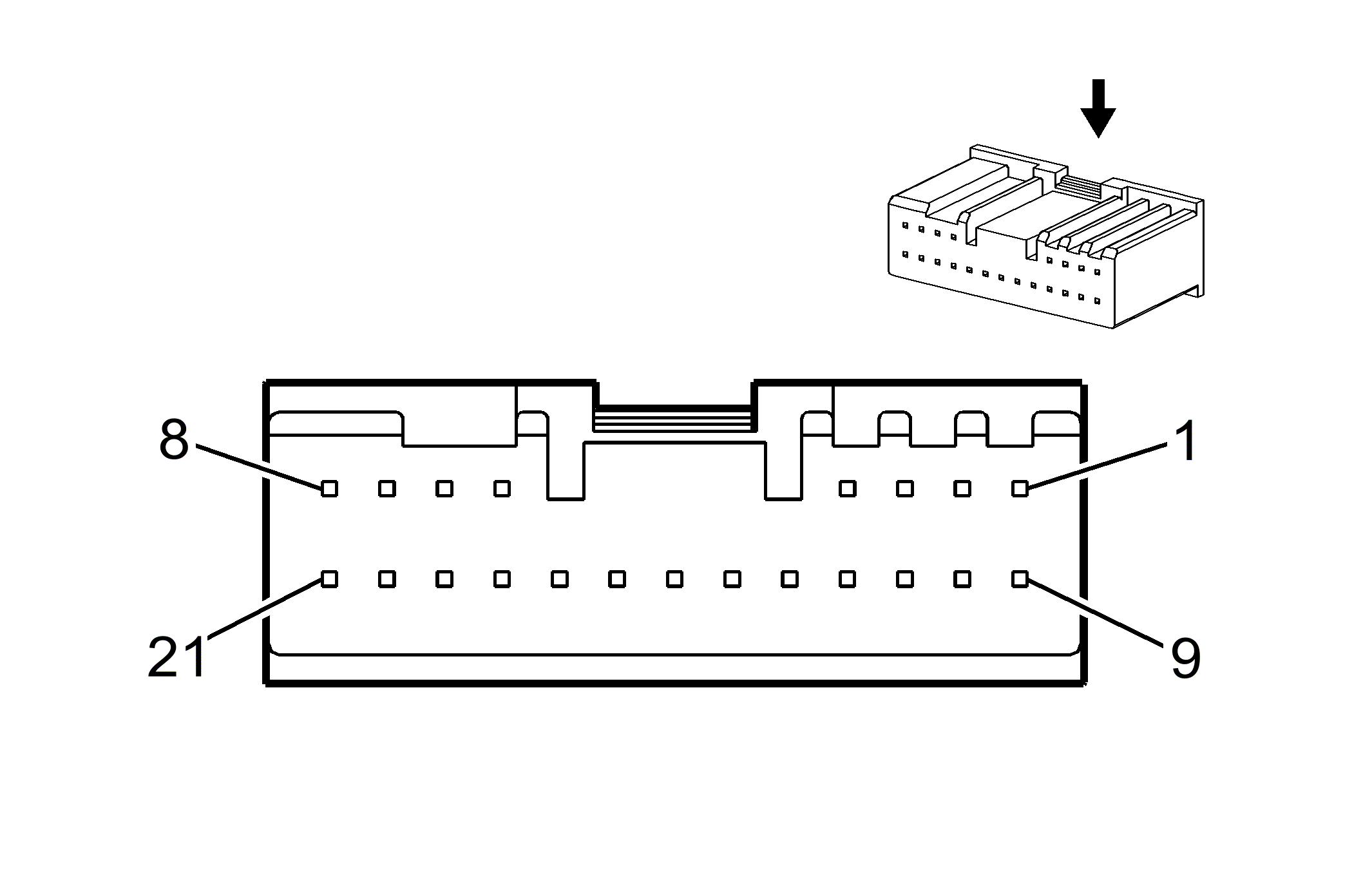

K112B Hybrid Battery Interface Control Module 2 X2
|
|
Connector Part Information
- Harness Type:
- OEM Connector: 13504010
- Service Connector: SEE NOTE
- Description: 21-Way F (OG)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Pending |
Pending |
Pending |
Not Available |
Not Available |
Not Available |
Not Available |
K112B Hybrid Battery Interface Control Module 2 X2
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BN/WH |
5406 |
Battery Module Temperature Signal (2) |
I |
- |
| 2 |
0.35 |
BK/BU |
3774 |
Battery Module Temperature Sensor Low Reference (2) |
I |
- |
| 3-8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
0.35 |
BN |
5571 |
Battery Voltage Signal (12) |
I |
- |
| 10 |
0.35 |
GN/GY |
5393 |
Battery Voltage Signal (11) |
I |
- |
| 11 |
0.35 |
BU/GY |
5392 |
Battery Voltage Signal (10) |
I |
- |
| 12 |
0.35 |
GN/BK |
5401 |
Battery Voltage Signal (9) |
I |
- |
| 13 |
0.35 |
BU |
5400 |
Battery Voltage Signal (8) |
I |
- |
| 14 |
0.35 |
YE/BN |
5399 |
Battery Voltage Signal (7) |
I |
- |
| 15 |
0.35 |
GN |
5398 |
Battery Voltage Signal (6) |
I |
- |
| 16 |
0.35 |
YE/GN |
5397 |
Battery Voltage Signal (5) |
I |
- |
| 17 |
0.35 |
GY/YE |
5396 |
Battery Voltage Signal (4) |
I |
- |
| 18 |
0.35 |
WH |
5395 |
Battery Voltage Signal (3) |
I |
- |
| 19 |
0.35 |
YE/VT |
5394 |
Battery Voltage Signal (2) |
I |
- |
| 20 |
0.35 |
VT |
5391 |
Battery Voltage Signal (1) |
I |
- |
| 21 |
0.35 |
BK/VT |
5403 |
Battery Pack Monitor Low Reference |
I |
- |
