Installation Procedure

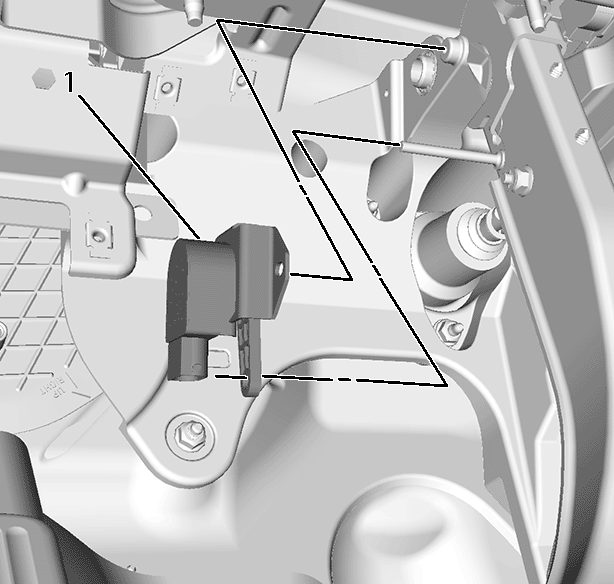

    Fig 1: Brake Control Brake Pedal Position Sensor
    GM3603945Courtesy of GENERAL MOTORS COMPANY
  1. Align the brake control brake pedal position sensor (1) to the hole on the brake pedal assembly bracket.
  2. Ensure the brake control brake pedal position sensor actuator lever is properly located on the brake pedal pin.

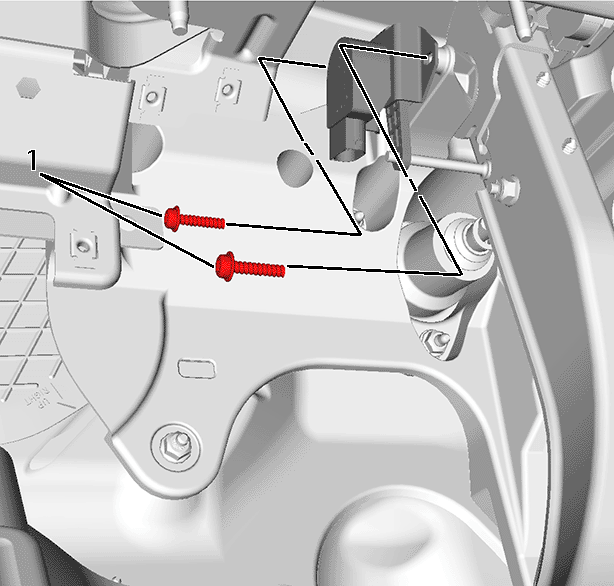

    3. Fig 2: Brake Control Brake Pedal Position Sensor Bolts
    GM3603943Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install the brake control brake pedal position sensor bolts (1) and tighten to 9 (80 lb in).
  4. Connect the brake control brake pedal position sensor electrical connector.
  5. Perform the Diagnostic System Check - Vehicle .
  6. Install the left side instrument panel lower trim panel insulator. Refer to Instrument Panel Lower Trim Panel Insulator Replacement - Left Side .
