Battery Charger
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Battery Charger

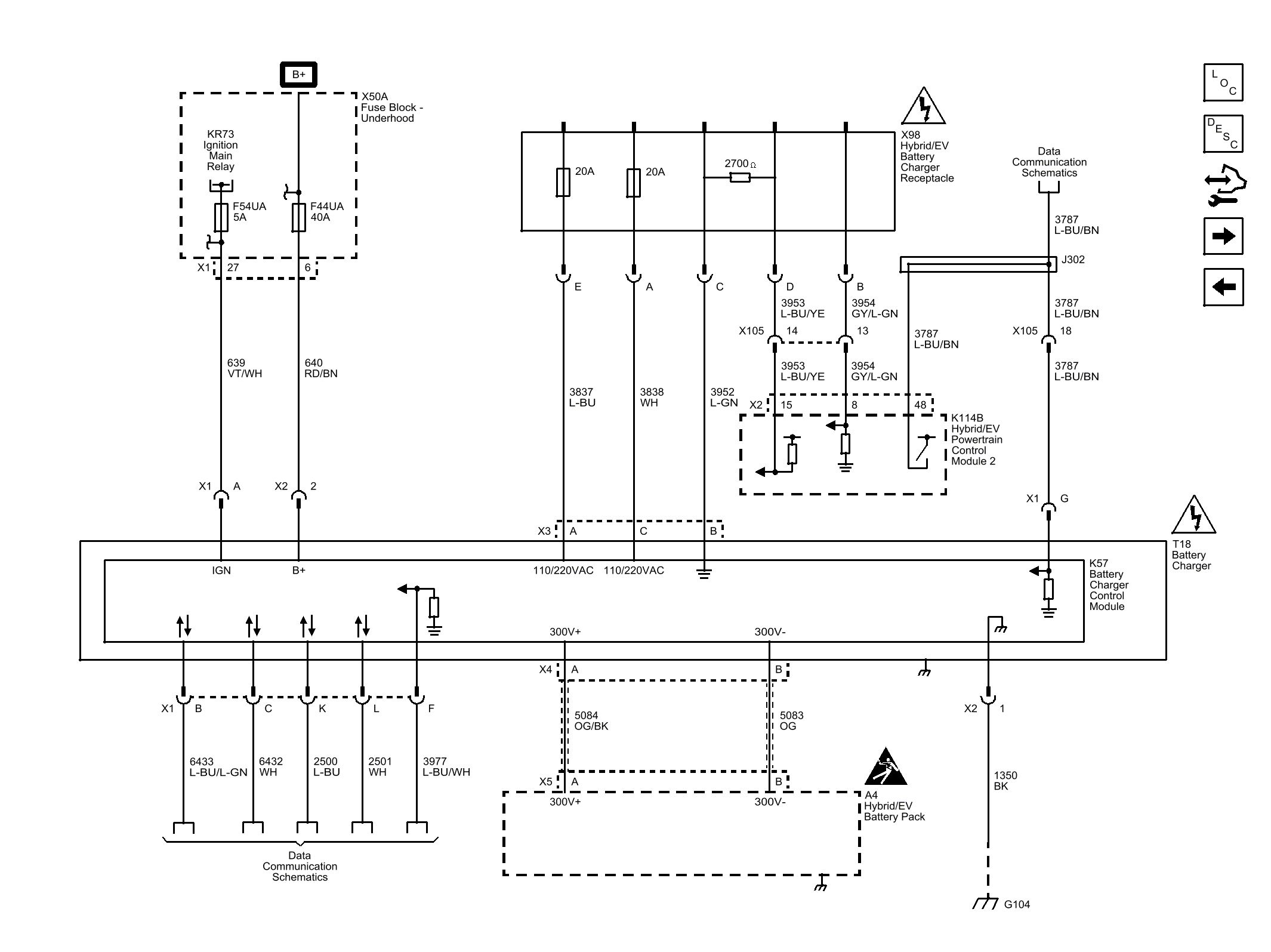

Fig 1: Battery Charger
Courtesy of GENERAL MOTORS COMPANY
